Description

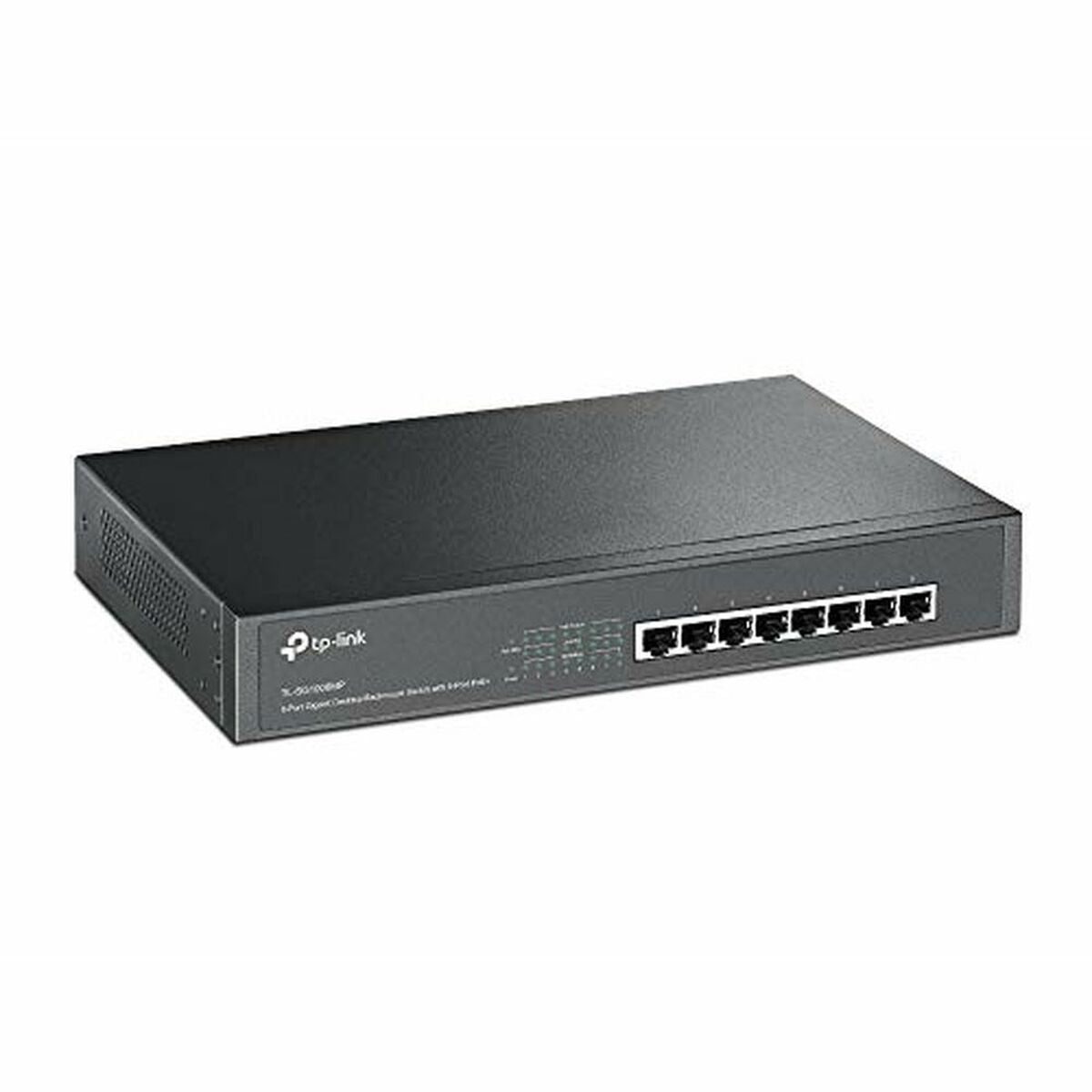

The TP-Link TL-SG1008MP cabinet switch is a professional networking device designed for environments requiring efficient and robust connectivity via Ethernet infrastructure. This desktop and rack-mountable switch offers 8 Gigabit RJ45 10/100/1000 Mbps ports , each compatible with PoE+ (Power over Ethernet) according to IEEE 802.3af and 802.3at standards , capable of delivering up to 30W per port to simultaneously power up to eight devices, such as IP cameras, access points, or VoIP phones, with a total PoE power budget of 126W . Manufactured from durable black metal , its compact design (294 mm wide, 180 mm deep, and 44 mm high) allows for easy integration into network cabinets and supports 1U rack mounting in 13" and 19" racks. The switch includes auto-negotiation and MDI/MDIX technology for flexible and hassle-free connectivity, as well as efficient bandwidth management with 16 Gbps of forwarding capacity and a MAC table supporting up to 4,000 addresses, ensuring stable performance in environments with multiple connected devices. Its single active fan ensures adequate cooling while keeping noise low, while the built-in energy efficiency technology optimizes consumption, which ranges from 9.9 W without PoE load to 144 W at maximum load . In addition, it features advanced IEEE 802.3x flow control functions, port prioritization, and a store-and-forward transfer method that minimizes data loss. This model supports a wide range of Category 3 to 6 UTP cables for networks up to 100 meters and meets FCC and RoHS certifications, guaranteeing a certified and environmentally responsible product. It is equipped with a complete mounting kit and accessories that facilitate professional installation, adapting to different network configurations. Its operating conditions cover a wide temperature range (0°C to 40°C) and humidity, allowing for stable operation in controlled environments. Together, the TP-Link TL-SG1008MP is a reliable and versatile solution for network infrastructure requiring integrated PoE power, high gigabit performance, and a compact design optimized for mounting in communication cabinets.
This equipment represents a balanced option for those seeking quality and functionality in a simple managed switch for professional applications.
- Technology: PoE
- Speed: 16 Gbps
- Power supply:
- electrical grid
- AC cable
- Included
- Voltage:
- 100-240 V
- 240 V
- 100 - 240 V
- Power consumption: 9.9-144 W
- Features: Light indicator
- Approximate dimensions: 29.4 x 18 x 4.4 cm
- Color: Black
- Ports: 8
- Plug-in product: Yes
- Plug type: EU plug
- Connections:
- RJ45
- 8
- PoE
- Ethernet LAN
- rj45 x 8
- Fan: 1
- Frequency:
- 50-60 Hz
- 50 - 60 Hz
- Material: ABS
- Power: 30 W
- Operating humidity range: 10% - 90%
- Approximate temperature: -40º / 70º
