Description

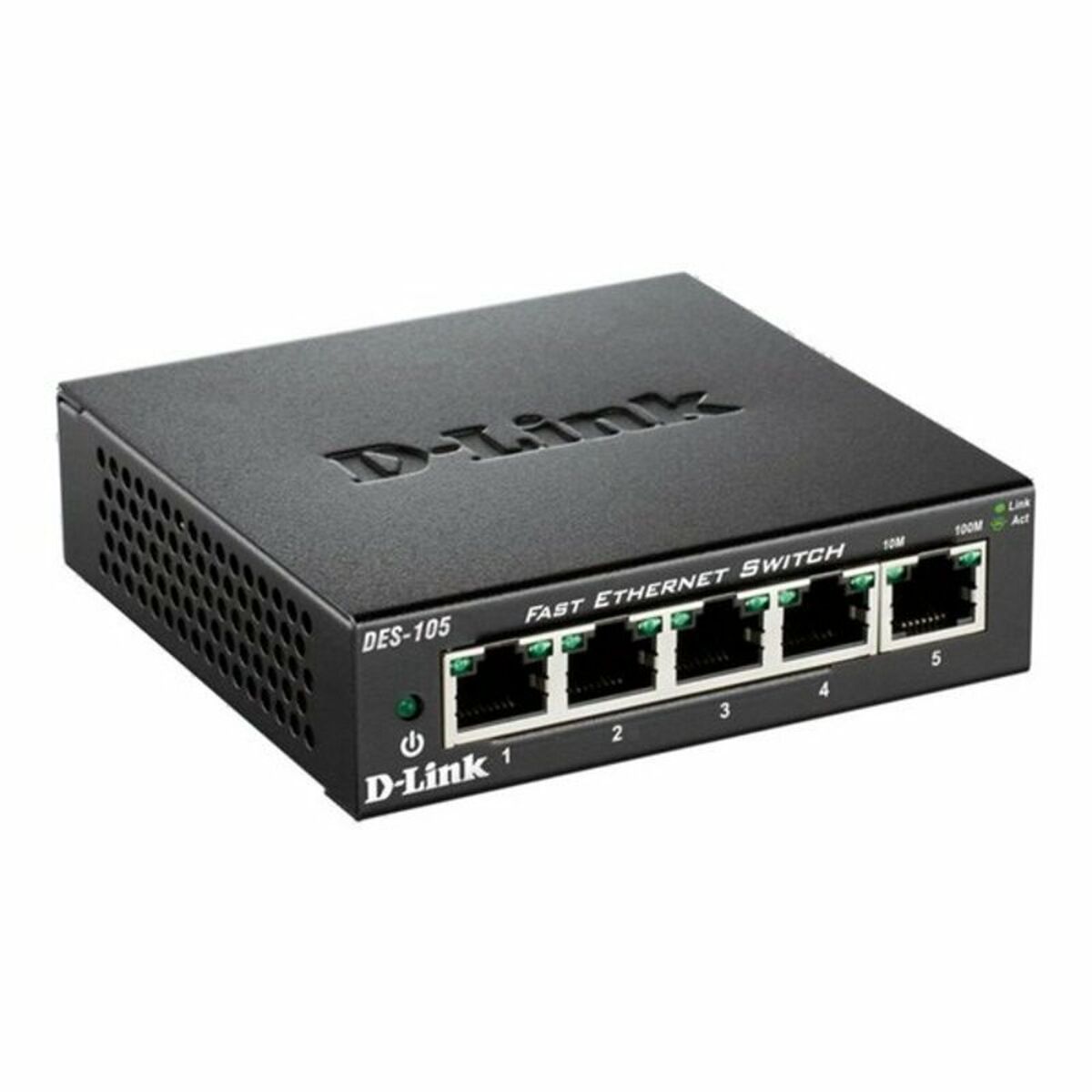

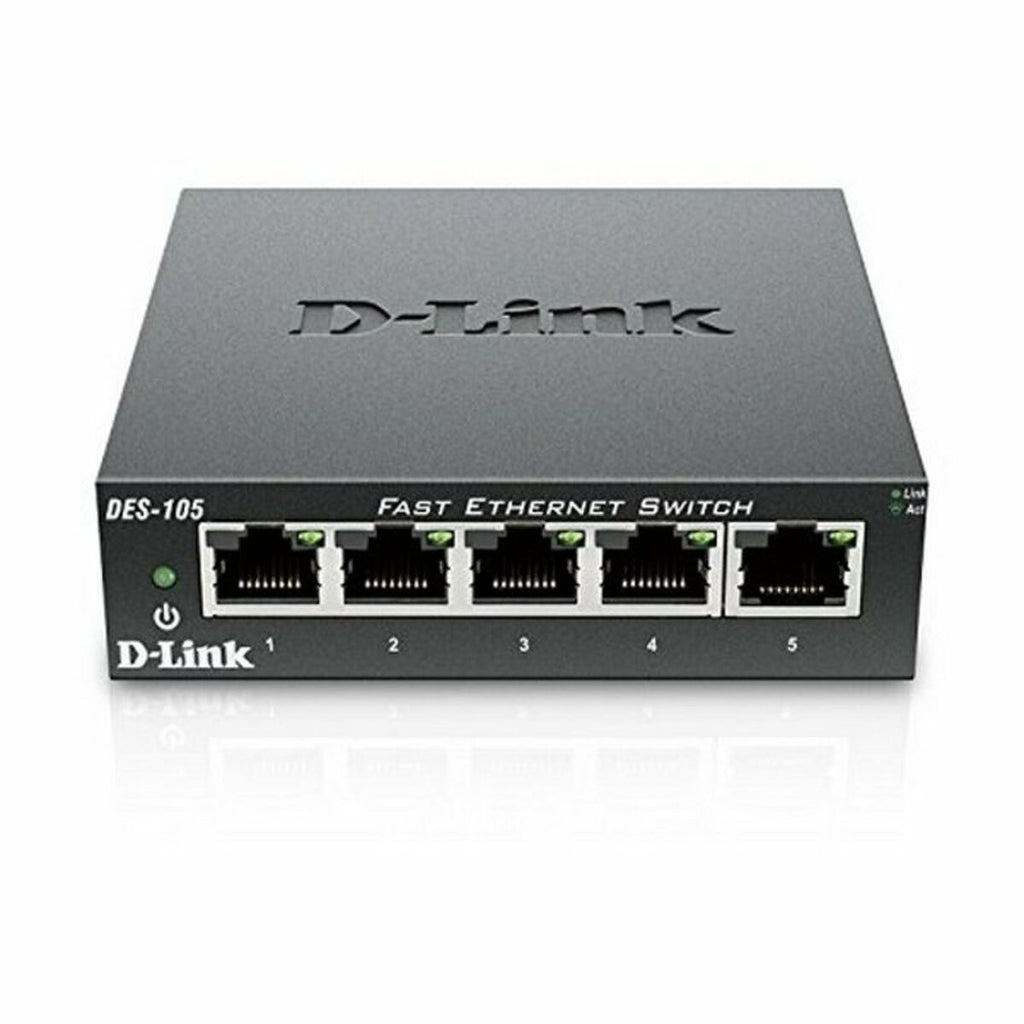

The D-Link DES-105/E desktop switch is a compact and robust device designed to improve connectivity in home and small office environments. This switch features five RJ-45 100Base-TX ports , offering fast and stable Fast Ethernet connections, ideal for sharing resources and easily expanding local area networks. Its black desktop design stands out thanks to its durable metal chassis, ensuring durability and proper heat dissipation, essential for maintaining reliable performance during long hours of continuous use. Furthermore, it incorporates auto-negotiation technology and MDI/MDI-X detection , facilitating connection to different devices without the need for special cables, simplifying installation and reducing configuration errors. The switch operates at 5V , ensuring efficient energy consumption and compatibility with standard power supplies. Its LED indicators allow for easy monitoring of connection status and data traffic for quick visual diagnostics. It complies with the IEEE 802.3x standard, which ensures smooth transmission control and prevents packet loss on the network. Together, the DES-105/E represents a simple, durable, and effective solution for expanding network infrastructure, facilitating a stable and efficient connection between multiple devices in a practical and affordable way.
- Color: Black
- Plug-in product: Yes
- Plug type: EU plug
- Type: Wired
- Power supply:
- electrical grid
- electrical cable
- Connections:
- RJ45
- SATAN
- RJ45 x 5
- Amperage: 1 A
- Material: Metal
- AC input voltage: 5 V
- Features:
- With cable
- LED indicator
- Voltage: 5 V
- Operating humidity range: 10% - 90%
- Speed: 1000 Mbps
D-Link DES-105. Number of Basic Switching RJ-45 Ethernet ports: 5. Full duplex. MAC address table: 2,000 entries. Routing/switching capacity: 1 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC input jack.
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 5

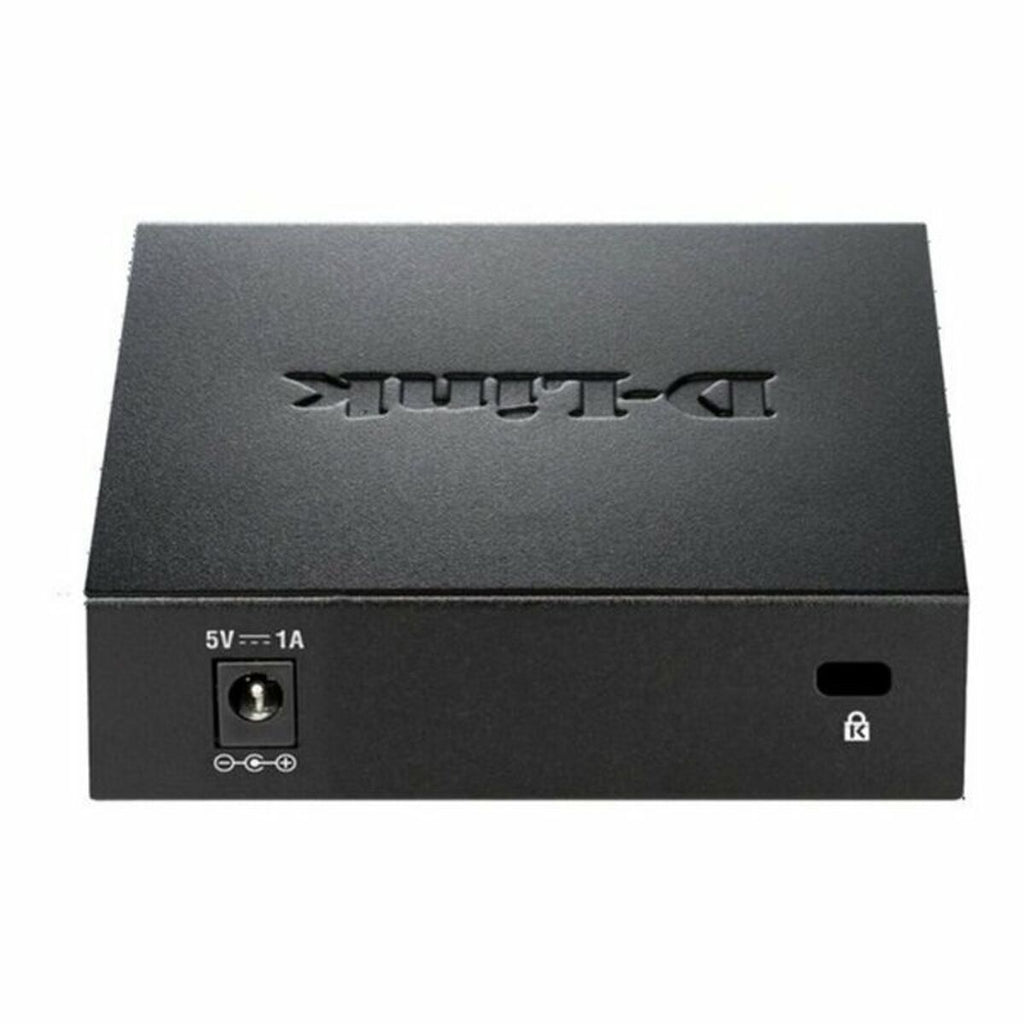

- Power connector: DC input jack
- Communication Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper Ethernet wiring technology: 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- MAC address table: 2000 entries
- Routing/switching capacity: 1 Gbit/s
- Data transmission speed: 10/100 Mbps
- Store-and-forward: Yes
- Maximum data transfer speed: 0.1 Gbit/s
- Supports jumbo packages: Yes
- Stored packet memory: 0.384 MB
- MAC address filtering: Yes
- Shelf assembly: No
- Product color: Black
- Product body material: Metal
- LED indicators: Connection, Dust
- Certifications: RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
- MTBF: 495709 h
- Shipping package height: 36.6 cm
- Shipping package width: 23 cm
- Shipping package length: 33.5 cm
- Net weight of shipping box: 4.5 kg
- Quantity per shipping package: 10 unit(s)
- Gross weight of the pallet (air): 434 kg
- Number of boxes per pallet (air): 75 unit(s)
- Quantity per pallet (air): 750 unit(s)
- Pallet length: 120 cm
- Pallet width: 110 cm
- Pallet height (air): 2.04 m
- Gross weight of the pallet (sea): 434 kg
- Number of boxes per pallet (mar): 75 unit(s)
- Quantity per pallet (mar): 750 unit(s)
- Pallet height (sea): 2.04 m
- Shipping package weight: 5.5 kg
- Input current: 1 A
- Typical power consumption: 1.9 W
- Operating temperature: 0 - 50 °C
- Temperature range (storage): -10 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-operating humidity: 5 - 90%
- Product weight: 265 g
- Package length: 170 mm
- Package width: 220 mm
- Package height: 62 mm
- Package weight: 450 g
- Actual transfer speed: 200 Mbit/s
- Product dimensions (LxWxH): 100 x 98 x 28 mm
- Connectivity technology: Wired
- Input voltage: 5 V
