Description
The ZY-GS12005 from ZyXEL is a managed desktop switch designed to offer efficient and fast connectivity in office or SME environments. It features 5 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps) that ensure fast and stable data transfer, ideal for local area networks that demand high performance. Its 10 Gbit/s switching capacity ensures smooth, congestion-free traffic, while the MAC address table with capacity for 2000 entries facilitates optimized network traffic management. Compatible with essential standards such as IEEE 802.1Q for VLANs, IEEE 802.1p for Quality of Service (QoS), and several other IEEE standards (802.3ab, 802.3az, 802.3u, 802.3x, 802.3z), this switch supports key functions for data prioritization and energy efficiency. Power is supplied via a 5V DC input, providing flexibility and efficient power consumption. In terms of design, the silver finish offers a modern and professional look that fits into any workspace. Additionally, it integrates USB connectivity that can be used for various complementary network functions. This device is intended for users seeking reliable equipment with good manageability and easy integration into existing infrastructures, offering a robust solution to improve local network connectivity and performance. The ZyXEL ZY-GS12005 represents a solid and practical option for those looking for a compact managed switch with advanced features and quality construction.
- Approximate dimensions: 12.1 x 2.6 x 7.5 cm
- Color: Silver
- Plug type: EU plug
- Plug-in product: Yes
- Power supply:
- electrical grid
- electrical cable
- Connections:
- RJ45
- USB
- SATAN
- Ethernet LAN
- RJ45 x 5
- Amperage: 1 A
- Support: Multi-support
- Voltage: 5 V
- Ports: 5
- Screen: 24"
- Features: LED operation indicator
- Weight: 190 g
- Operating humidity range: 10% - 90%
- Approximate temperature: -40º / 70º
- Security: IGMP
- Cores: 1 double
- Product width: 12.1 cm
Zyxel GS1200-5. Switch type: Managed. Ethernet port types: RJ-45 Basic Switching: Gigabit Ethernet (10/100/1000). Number of RJ-45 Basic Switching Ethernet ports: 5. MAC address table: 2000 entries. Routing/switching capacity: 10 Gbit/s. Communication standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 5 V. Power connector: DC input jack.
- Switch type: Managed
- Support for Quality of Service (QoS): Yes
- Web-based management: Yes

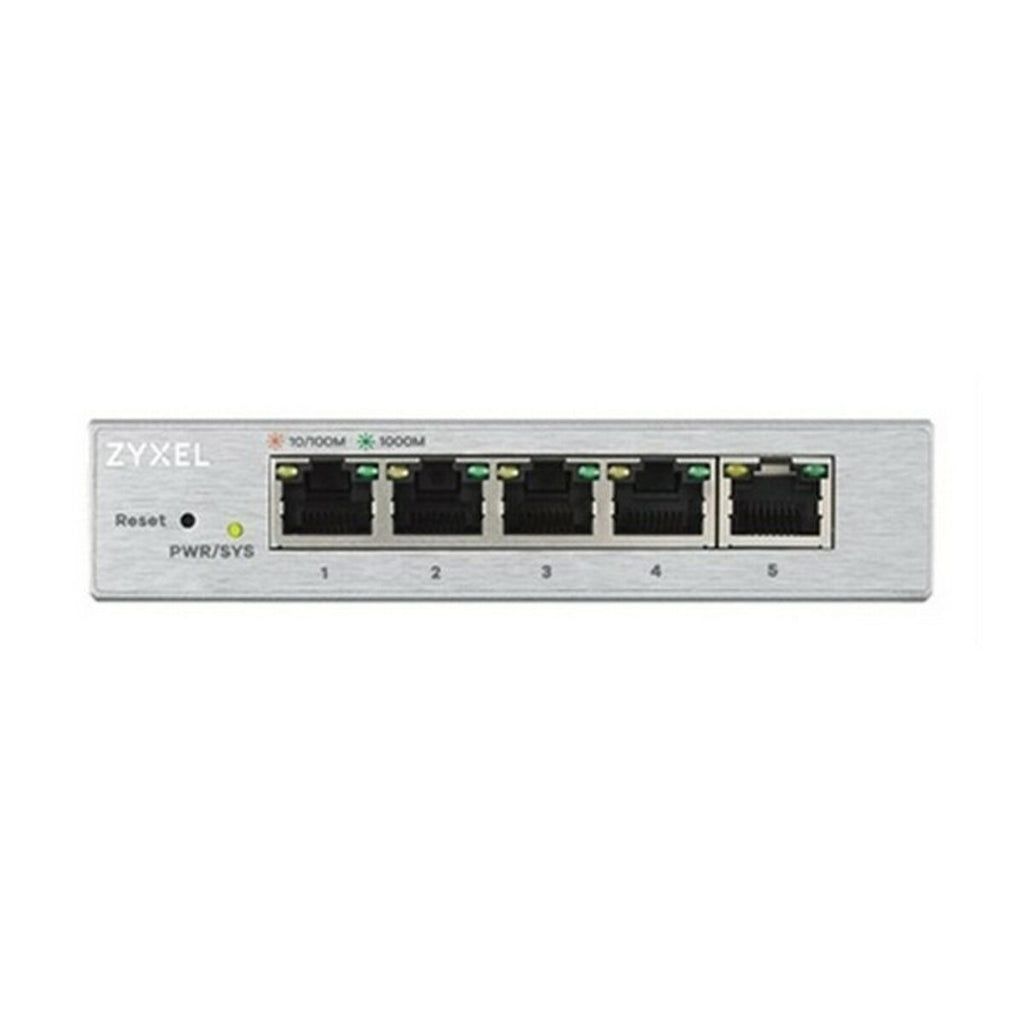

- Number of Basic Switching RJ-45 Ethernet ports: 5
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)

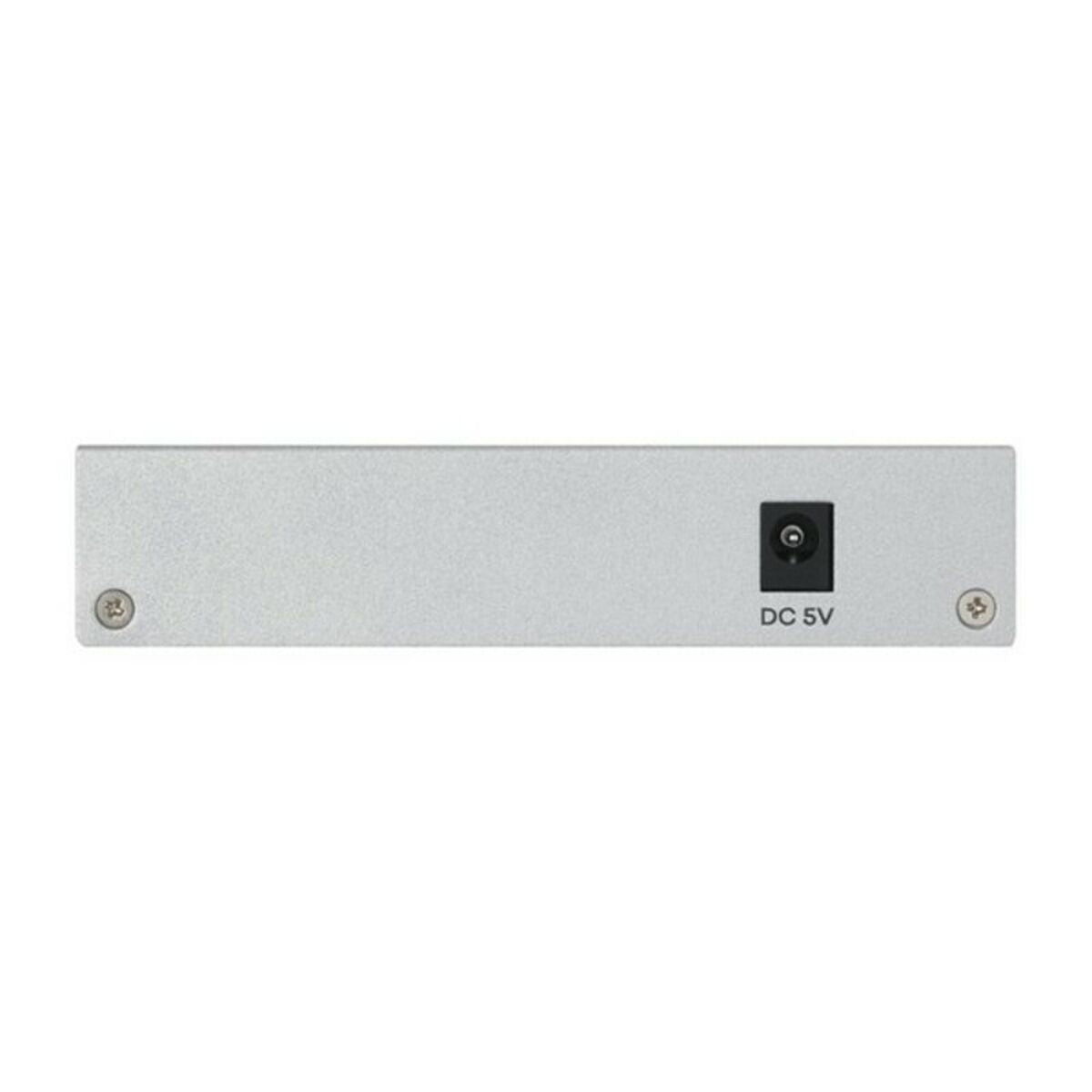

- Power connector: DC input jack
- Communications Standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- 10G support: No
- Door mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Diffusion storm control: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- MAC address table: 2000 entries
- Routing/switching capacity: 10 Gbit/s
- Supports jumbo packages: Yes
- Jumbo packs: 9000
- Stored packet memory: 1 MB
- DHCP features: DHCP client
- IGMP snooping: Yes
- Authentication: Auto VLAN, MAC-based authentication (Message Authentication Code)
- Multicast support: Yes
- Management protocols: IGMPv1, IGMPv2, IGMPv3
- Shelf assembly: No
- Product color: Silver
- LED indicators: Dust
- Safety: CE-LVD, BSMI
- Electromagnetic compatibility: CE, FCC, BSMI, Class B
- Firmware upgradable: Yes
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 2.03 W
- Power over Ethernet (PoE): No
- Operating temperature: 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-functioning humidity: 10 - 90%
- Width: 121 mm
- Depth: 75 mm
- Height: 26 mm
- Product weight: 233 g
- Quick start guide: Yes
- AC adapter included: Yes
- Packaging type: Box
- Rubber feet: Yes
- Package length: 127 mm
- Package width: 82 mm
- Package height: 95 mm
- Package weight: 388 g
