Description

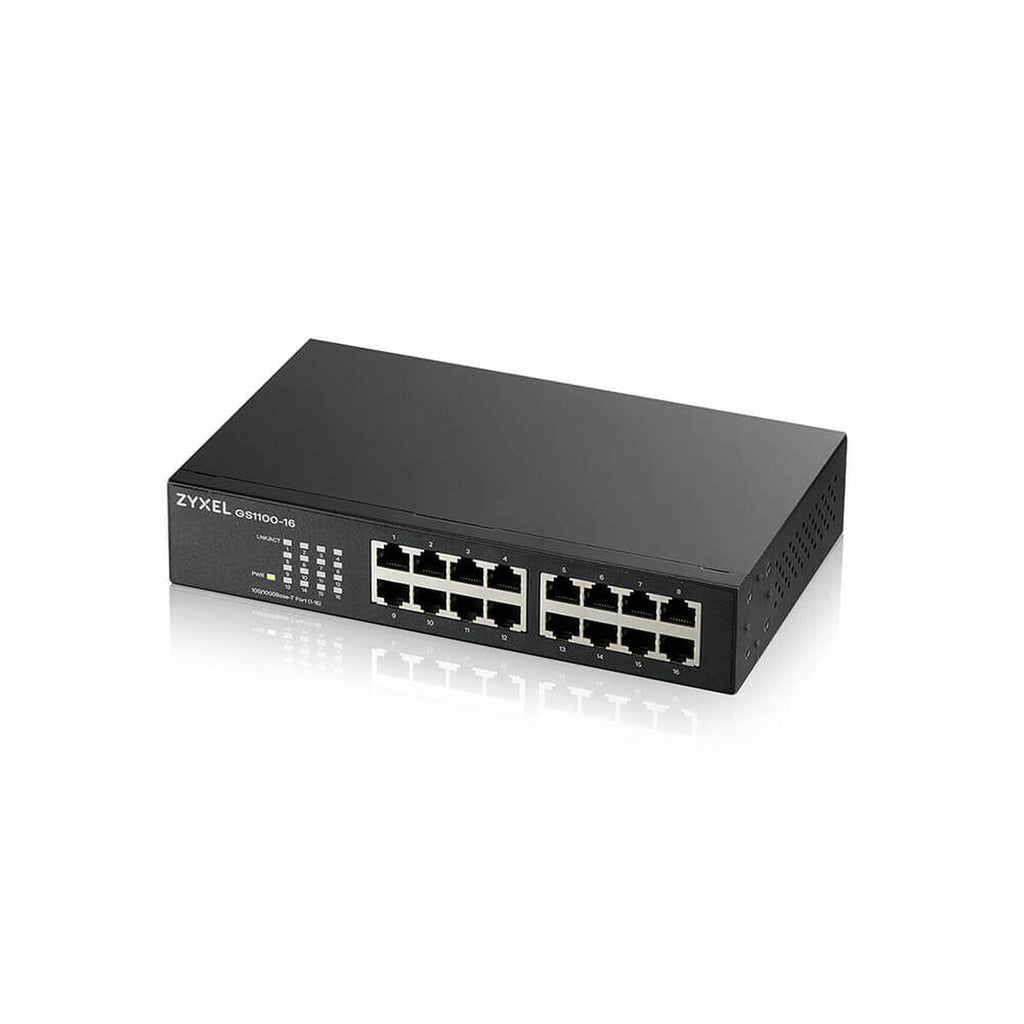

The Zyxel GS1100-16 is an unmanaged switch designed to offer efficient and reliable connectivity in medium-sized networks, ideal for offices or environments that need a simple and robust solution. It features 16 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps) , allowing for high data transfer speeds and the simultaneous connection of multiple devices with stable performance. Its 32 Gbit/s switching capacity and a MAC address table with 8,000 entries ensure smooth and efficient traffic, optimizing internal network management without the need for additional configuration. It is constructed of aluminum , with a compact black design, facilitating integration into any professional environment, with the added advantage of wall or rack mounting , offering flexibility for installation according to physical space requirements. It supports modern network standards such as IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x and IEEE 802.3z , ensuring compatibility with various equipment and advanced energy efficiency and traffic control features. Furthermore, it operates on 220V power via the included AC cable, guaranteeing immediate deployment after installation. The combination of its robust structure, technical features, and ease of use makes the Zyxel GS1100-16 a solid option for those who need a reliable, fast, and uncomplicated Ethernet switch . This equipment offers a practical and long-lasting solution for maintaining an efficient and stable local area network.
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Power supply:
- electrical grid
- AC cable
- Included
- Connections:
- RJ45
- Ethernet LAN
- Voltage:
- 100-240 V
- 220 V
- 100 - 240 V
- Frequency: 50-60 Hz
- Color: Black
- Material: Aluminum
- Features: Wall mounting
- Ports: 16
- AC input frequency: 50-60 Hz
- LED indicator: Status: ON, change in intensity, or load.
- Weight: 10 g
- Operating humidity range: 10% - 90%
- Approximate temperature: -40º / 70º
- Product width: 21.5 cm
Zyxel GS1100-16. Switch type: Unmanaged. Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000). Number of Basic switching RJ-45 Ethernet ports: 16. MAC address table: 8000 entries. Routing/switching capacity: 32 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable, Rack mountable.
- Switch type: Unmanaged
- Number of Basic Switching RJ-45 Ethernet ports: 16
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Communications Standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- 10G support: No
- Supported cable types: Cat3, Cat4, Cat5, Cat5e, Cat6
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Active connection detected: Yes
- MAC address table: 8000 entries
- Routing/switching capacity: 32 Gbit/s
- Routing rate: 23.8 Mpps
- Supports jumbo packages: Yes
- Jumbo packs: 9216
- Packet memory stored: 0.5 MB
- Shelf assembly: Yes
- LED indicators: Activity, Connection, Dust
- Wall mountable: Yes
- Electromagnetic compatibility: CE, FCC, RCM, ICES-003, BSMI
- Certification: LVD, BSMI RoHS, REACH
- Without fans: Yes
- MTBF: 1,156,942 h
- Power supply included: Yes
- Number of energy suppliers: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 10 W
- Power over Ethernet (PoE): No
- Operating temperature (TT): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity (HH): 10 - 90%
- Non-functioning humidity: 10 - 95%
- Heat dissipation: 32.86 BTU/h
- Width: 215 mm
- Depth: 133 mm
- Height: 42 mm
- Weight: 19.8 kg
- Cables: AC
- Packaging type: Box
- Shelf mounting kit: Yes
