Description

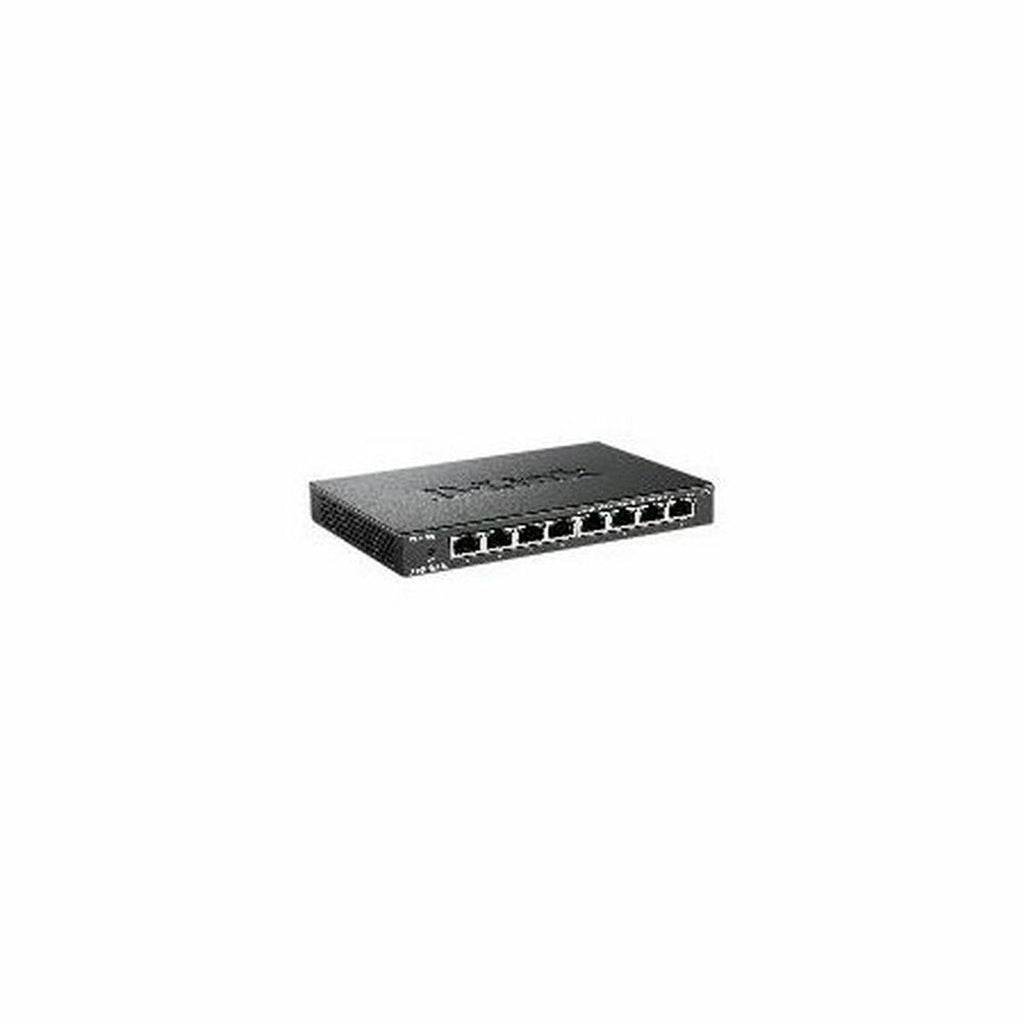

The D-Link DES-108/E switch is a network device designed to offer efficient and stable connectivity in home or small office environments, thanks to its 8 RJ-45 ports compatible with 10/100 Mbps transmission speeds, ensuring smooth communication between different devices with Ethernet cables. This model features a compact and functional design with a black finish, manufactured from a combination of metal and plastic that ensures resistance and durability, facilitating its integration into any workspace or home. It operates at 5V , which gives it energy efficiency and compatibility with most standard power systems. In addition, it incorporates LED indicators that allow easy monitoring of the activity and status of each port, facilitating the troubleshooting of any network problems. Equipped with basic technology, the DES-108/E intelligently converts data traffic to optimize the overall performance of the local network, making it an affordable and reliable solution for expanding wired connectivity without complications. Its robust construction and ease of use make it an essential component for anyone who needs to manage multiple network devices while maintaining stable, low-latency connections. Together, this switch represents a practical and affordable alternative for improving network infrastructure in environments with basic wired connection needs.
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Power supply:
- electrical grid
- Electrical cable
- Color: Black
- Connections:
- RJ45
- rj45 x 8
- Amperage: 1 A
- Material:
- Metal
- Plastic
- AC input voltage: 5 V
- Features: LED indicator
- Voltage: 5 V
- Ports: 8
- Operating humidity range: 10% - 90%
D-Link DES-108. Number of Basic Switching RJ-45 Ethernet ports: 8. Full duplex. MAC address table: 1000 entries. Routing/switching capacity: 1.6 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC input jack.
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 8
- Power connector: DC input jack
- Communication Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper Ethernet wiring technology: 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- MAC address table: 1000 entries
- Routing/switching capacity: 1.6 Gbit/s
- Data transmission speed: 10/100 Mbps
- Store-and-forward: Yes
- Maximum data transfer speed: 0.1 Gbit/s
- Supports jumbo packages: Yes
- Stored packet memory: 0.768 MB
- MAC address filtering: Yes
- Shelf assembly: No
- Product color: Black
- Product body material: Metal
- LED indicators: Connection, Dust
- Certifications: RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
- MTBF: 511323 h
- Shipping package height: 44.3 cm
- Shipping package width: 26 cm
- Shipping package length: 37 cm
- Net weight of shipping box: 6.1 kg
- Quantity per shipping package: 10 unit(s)
- Gross weight of the pallet (air): 357.5 kg
- Number of boxes per pallet (air): 48 unit(s)
- Quantity per pallet (air): 480 unit(s)
- Pallet length: 102 cm
- Pallet width: 122 cm
- Pallet height (air): 2.07 m
- Gross weight of pallet (sea): 357.5 kg
- Number of boxes per pallet (mar): 48 unit(s)
- Quantity per pallet (mar): 480 unit(s)
- Pallet height (sea): 2.07 m
- Shipping package weight: 7 kg
- Input current: 1 A
- Typical power consumption: 4.5 W
- Operating temperature: 0 - 50 °C
- Temperature range (storage): -10 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-operating humidity: 5 - 90%
- Package length: 208 mm
- Package width: 250 mm
- Package height: 68 mm
- Package weight: 610 g
- Actual transfer speed: 200 Mbit/s
- Product dimensions (LxWxH): 162 x 102 x 28 mm
- Input voltage: 5 V
