Description

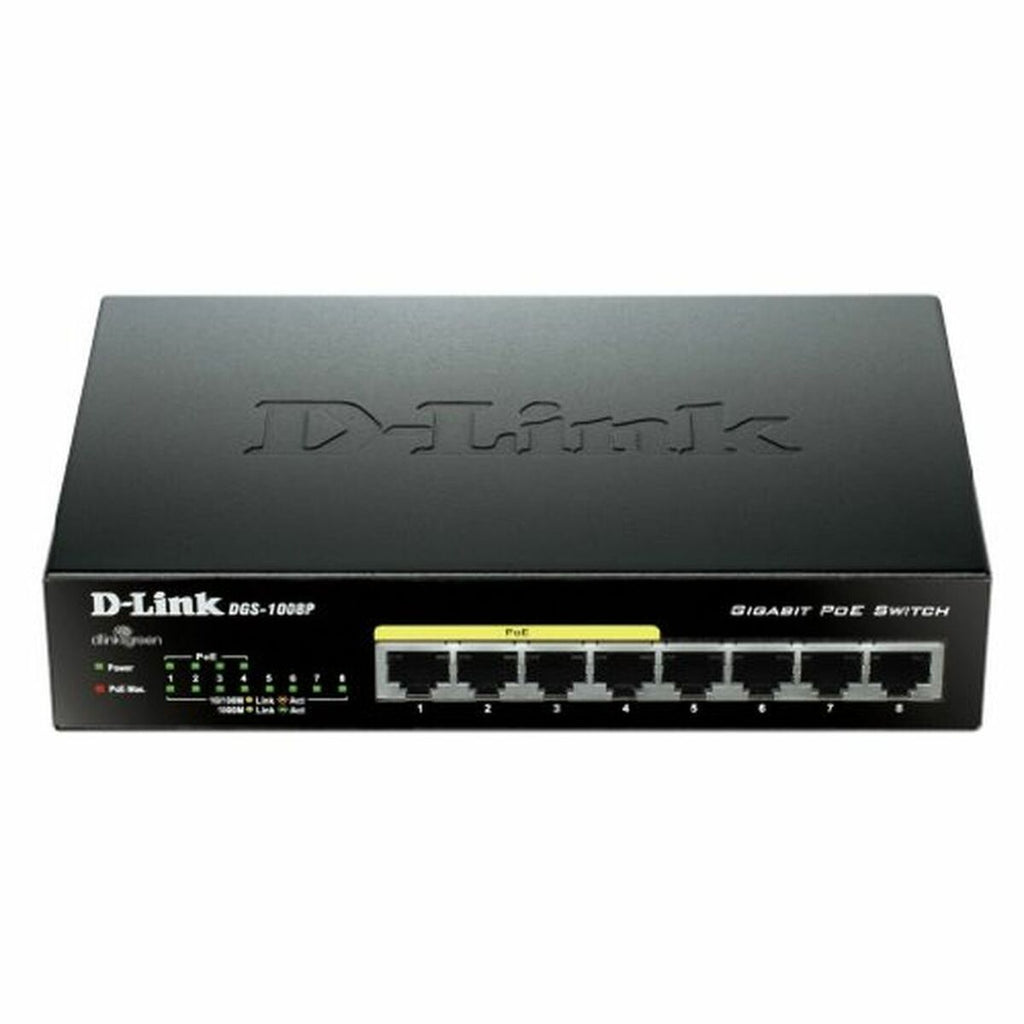

The D-Link DGS-1008P switch is a desktop device designed for corporate environments and home offices that require an efficient, high-performance networking solution. This model offers 8 Gigabit Ethernet 10/100/1000 Mbps ports , including 4 ports with PoE (Power over Ethernet) functionality that meet the IEEE 802.3af standard , capable of delivering up to 15.4 W per port to power compatible devices such as IP cameras, wireless access points, or VoIP phones, eliminating the need for additional power supplies in remote locations. Its non-blocking architecture provides a total bandwidth of 16 Gbps , allowing data transmission at maximum speed simultaneously on all ports, while Auto MDI/MDIX technology facilitates connectivity without the need for crossover cables. Furthermore, it includes a plug-and-play system that simplifies installation without advanced configuration, ideal for users who want a fast and functional network from the start. The DGS-1008P features QoS (Quality of Service) based on IEEE 802.1pe DSCP , which prioritizes voice, video, and data traffic to improve communication quality and prevent delays or losses, despite being an unmanaged switch. Its fanless design ensures quiet operation, suitable for office environments or meeting rooms, while Green Ethernet technology reduces power consumption by adjusting power according to the length of the connected cable and disabling inactive ports, extending the equipment's lifespan and reducing energy costs. The device also includes a cabling diagnostic function that detects cable faults and reports them via LED indicators on the front panel, facilitating the identification and resolution of network problems. Among its technical specifications, it features a maximum power consumption of 57.83 W with PoE enabled , a buffer memory of 192 Kbytes per port , and a MAC address table capable of storing up to 4,000 entries, optimizing internal traffic management. Its compact dimensions of 190 x 120 x 38 mm and its black plastic casing make it a discreet device that easily integrates into any space. Compliant with multiple international safety and electromagnetic emission certifications, the DGS-1008P is a practical, economical, and reliable option for expanding or improving network infrastructures with high Gigabit performance and PoE power demands in professional environments.
- Plug-in product: Yes
- Plug type: EU plug
- Ports:
- 4
- 8
- Type: Switch
- Power supply:
- electrical grid
- Included
- Color: Black
- Connections:
- RJ45
- PoE x 4
- PoE x 1
- Ethernet LAN
- rj45 x 8
- Power:
- 60 W
- 30 W
- 80 W
- Speed: 16 Gbps
- Material: Plastic
- Features:
- LED indicator
- LED operation indicator
- Weight: 730 g
- Approximate temperature: -40º / 70º
- Amperage: 1.5 A
D-Link DGS-1008P. Switch type: Unmanaged. Ethernet port types: RJ-45 Basic Switching: Gigabit Ethernet (10/100/1000). Number of RJ-45 Basic Switching Ethernet ports: 8. Full duplex. MAC address table: 8000 entries. Routing/switching capacity: 16 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC input jack. Power over Ethernet (PoE).
- Switch type: Unmanaged
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 8
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Power connector: DC input jack
- Communication Standards: IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper Ethernet wiring technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Supported cable types: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Automated trading: Yes
- MAC address table: 8000 entries
- Routing/switching capacity: 16 Gbit/s
- Store-and-forward: Yes
- Packet redirection speed (1 Gbps): 14880 pps
- Packet forwarding speed (100 Mbps): 148800 pps
- Packet redirection speed (10 Mbps): 1,488,000 pps
- Packet memory stored: 0.256 MB
- Product color: Black
- LED indicators: Activity, Link, PoE, Dust, Speed, Status
- Power supply included: Yes
- Input current: 1.5 A
- Power over Ethernet (PoE): Yes
- Number of PoE ports: 4
- Power per Power over Ethernet (PoE) port: 30 W
- Total Power over Ethernet (PoE) Budget: 68 W
- Operating temperature: 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity range: 0 - 95%
- Width: 190 mm
- Depth: 120 mm
- Height: 38 mm
