Description

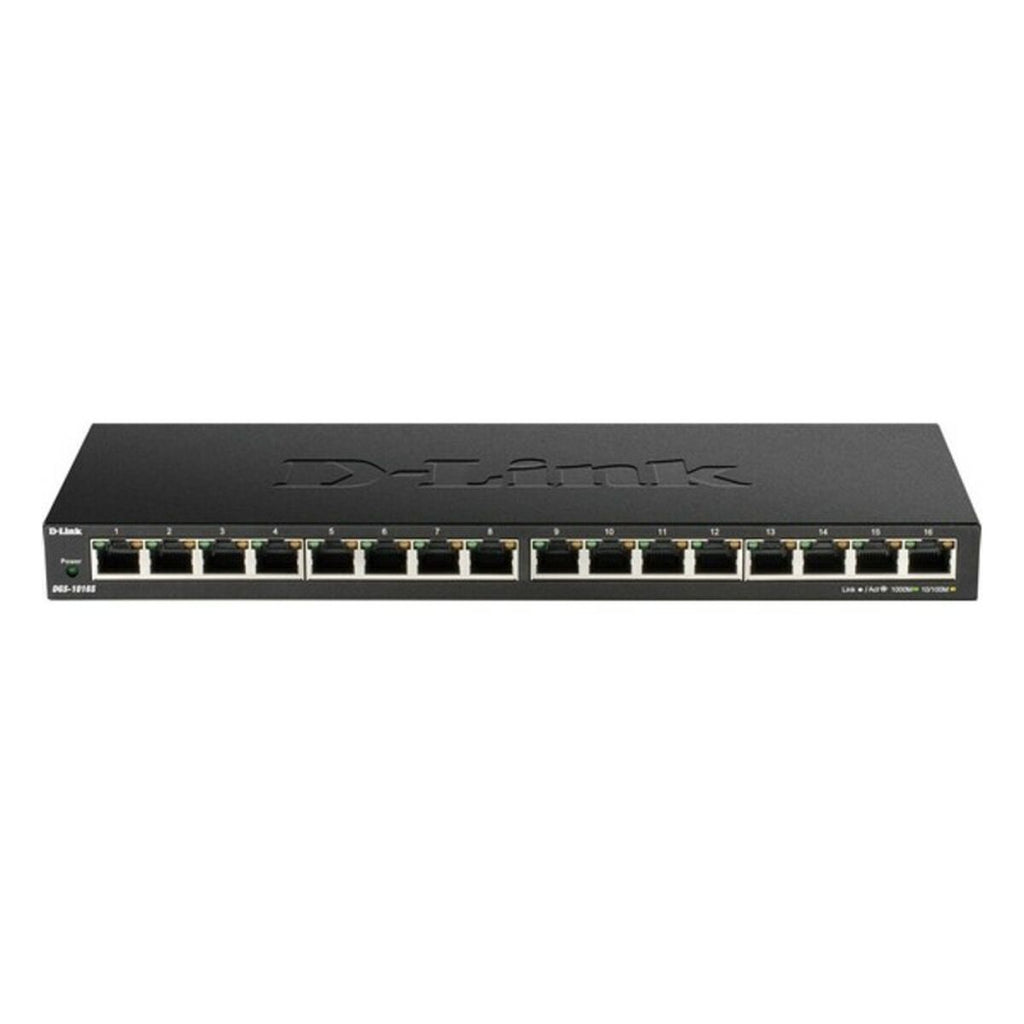

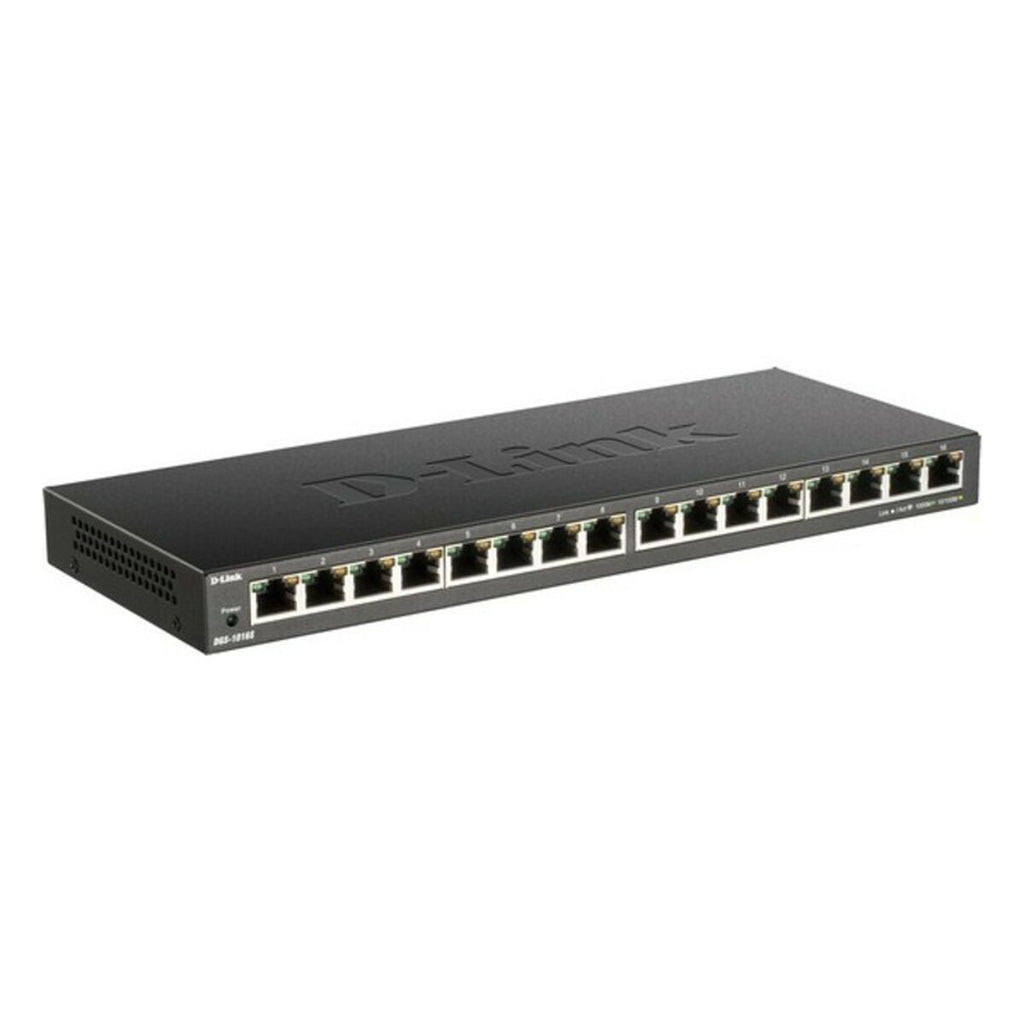

The D-Link DGS-1016S is a desktop switch designed for networks that demand high efficiency and reliability. It features 16 RJ45 ports supporting 10/100/1000 Mbps speeds, enabling Gigabit Ethernet connections for fast and stable data transfer. This model meets IEEE 802.3 standards, including 10BASE-T, 100BASE-TX, 1000BASE-T, 802.3x Flow Control , 802.1p QoS for quality of service, and 802.3az EEE for energy efficiency, reducing consumption without sacrificing performance. It has a switching capacity of 32 Gbps , with advanced features such as Auto-MDI/MDIX on all ports, eliminating the need for crossover cables, and a secure store-and-route scheme that improves packet integrity and processing speed. It supports jumbo frames up to 9,216 bytes and offers automatic negotiation and adaptation to speeds and duplex modes (full and half), facilitating integration with various devices and networks. It includes a QoS architecture with 8 queues in strict mode , optimizing traffic and prioritizing critical data to ensure efficient flow.

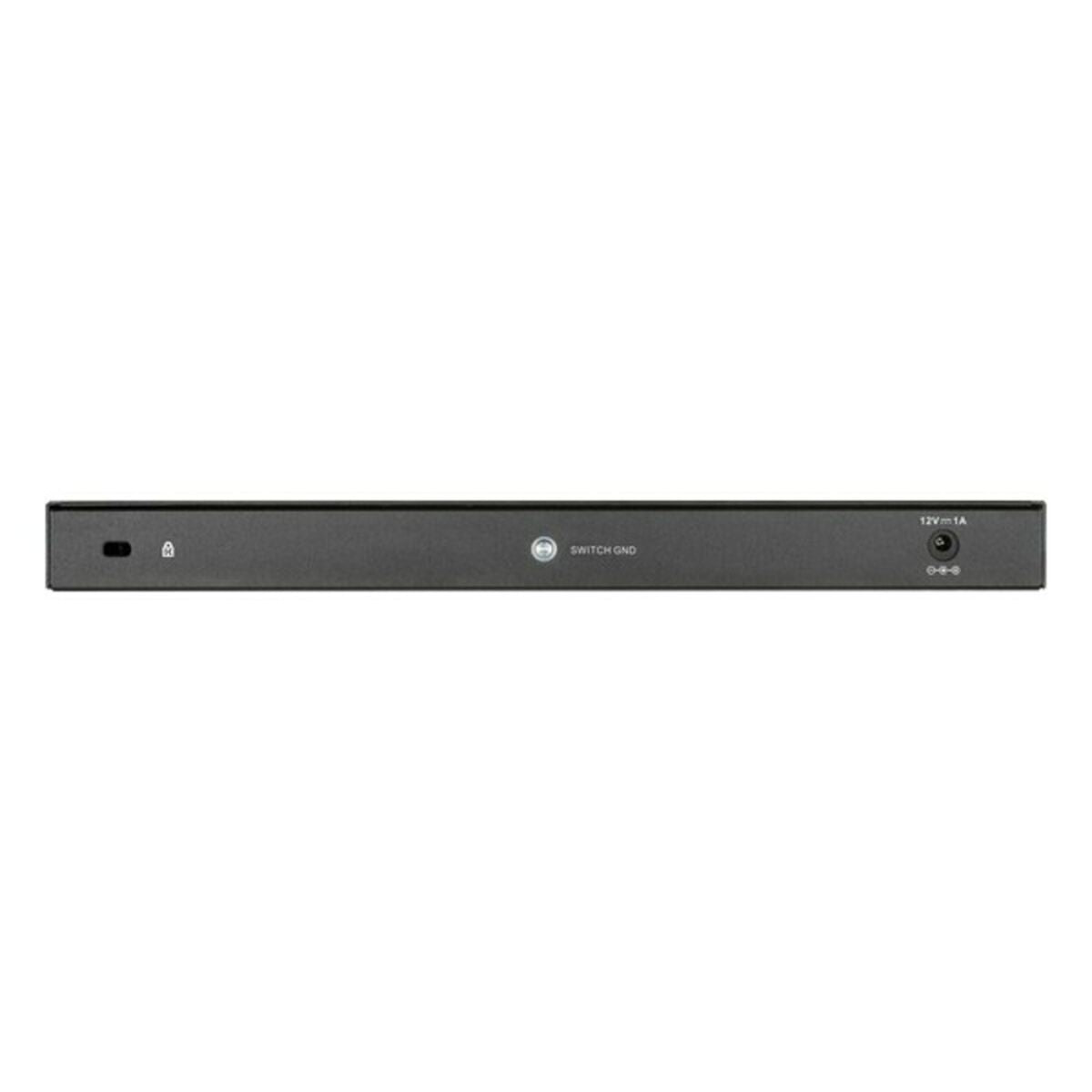

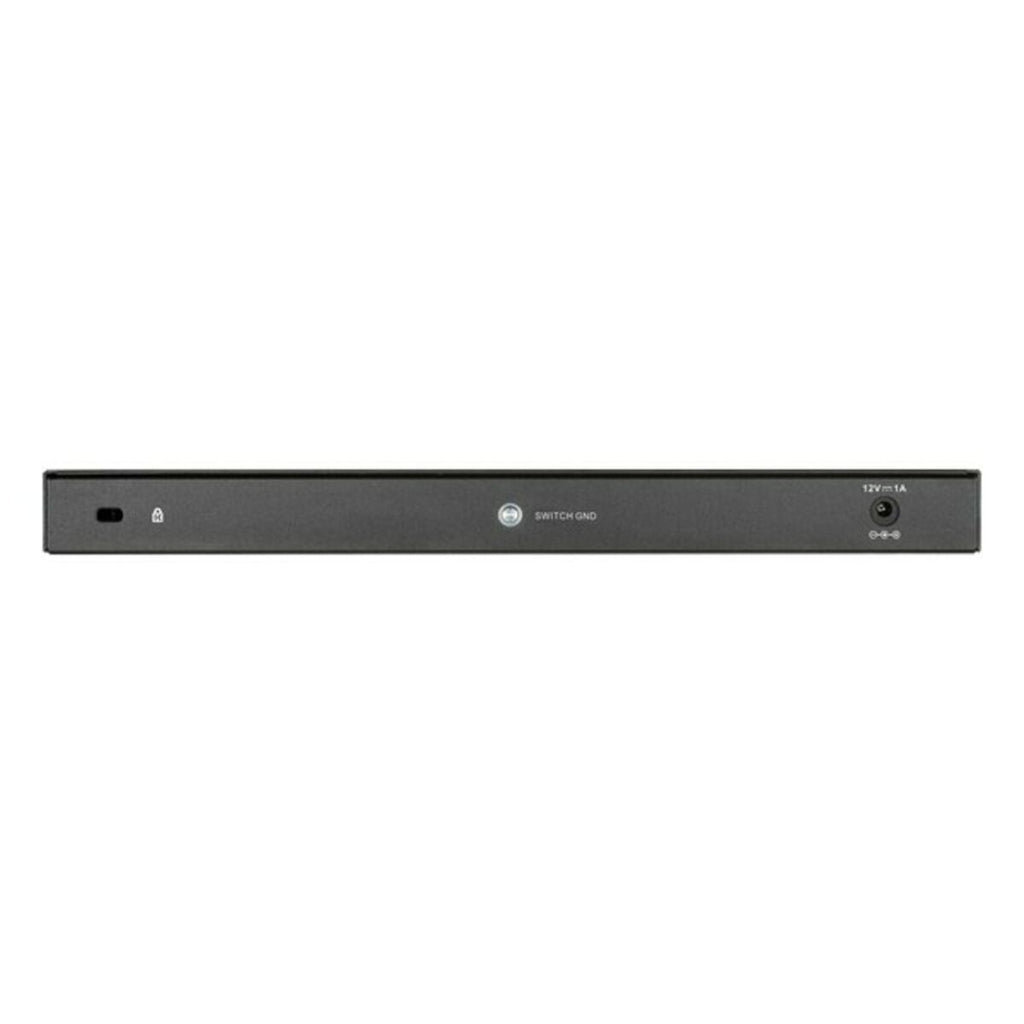

Regarding physical specifications, the DGS-1016S switch has a compact black design with a metal casing that provides robustness and a light weight of 0.77 kg . It measures 280 x 110 x 25 mm , making it easy to place in small spaces. It is equipped with LEDs that indicate connection status, activity, and speed per port, as well as a general power indicator, facilitating quick visual monitoring. Power is supplied by an external 12 V / 1 A adapter, with consumption between 3.37 W in standby and up to 8.89 W in maximum use , contributing to low energy impact and silent operation. It supports operating temperatures between 0 and 40 °C and storage between -40 and 70 °C , ensuring resistance in various conditions. It meets electromagnetic emission standards CE class A, FCC, ICES 003 and RCM, guaranteeing compatibility and electrical safety.
With an 8,000-entry MAC address table and 512 KB of RAM buffer, the DGS-1016S efficiently manages forwarding rates: 14,880 pps for Ethernet, 148,800 pps for Fast Ethernet, and 1,488,000 pps for Gigabit Ethernet per port , optimizing performance in networks with high data demands. This D-Link switch is the ideal solution for professional or home networks that require stability, speed, and efficient traffic management, combining advanced features and a robust design for reliable and continuous operation.
- Product width: 280 mm
- Approximate temperature:
- 40°C / 70°C
- -40º / 70º
- Speed:
- 10/100/1000 Mbps
- 32 Gbps
- 1 Gbps
- Amperage:
- 1 A
- 10 A
- Color: Black
- Type:
- Dessert
- Switch
- IP Rating: IP20
- Plug-in product: Yes
- Plug type: EU plug
- Power Source: mains electricity
- Connections:
- RJ45
- Ethernet LAN
- Material: Metal
- Voltage: 12 V
- Ports: 16
- Features: Plug and play
- Operating humidity range: 10% - 90%
D-Link DGS-1016S. Switch type: Unmanaged. Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000). Number of Basic switching RJ-45 Ethernet ports: 16. Full duplex. MAC address table: 8000 entries. Routing/switching capacity: 32 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V
- Switch type: Unmanaged
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 16
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Communication Standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
- 10G support: No
- Copper Ethernet wiring technology: 1000BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Automated trading: Yes
- Cable length detection: Yes
- MAC address table: 8000 entries
- Routing/switching capacity: 32 Gbit/s
- Store-and-forward: Yes
- Number of rows: 8
- Supports jumbo packages: Yes
- Jumbo packs: 9216
- Packet redirection speed (1 Gbps): 1,488,000 pps
- Packet forwarding speed (100 Mbps): 148800 pps
- Packet forwarding speed (10 Mbps): 14880 pps
- Stored packet memory: 0.512 MB
- Product color: Black
- LED indicators: Activity, Connection, Dust, Speed
- Security: LVD
- Certifications: CE, FCC, ICES 003, RCM
- Plug and Play: Yes
- Without fans: Yes
- MTBF: 564658 h
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 8.89 W
- Power over Ethernet (PoE): No
- Operating temperature: 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-functioning humidity: 5 - 95%
- Heat dissipation: 30.32 BTU/h
- Width: 280 mm
- Depth: 110 mm
- Height: 25 mm
- Product weight: 770 g
