Description

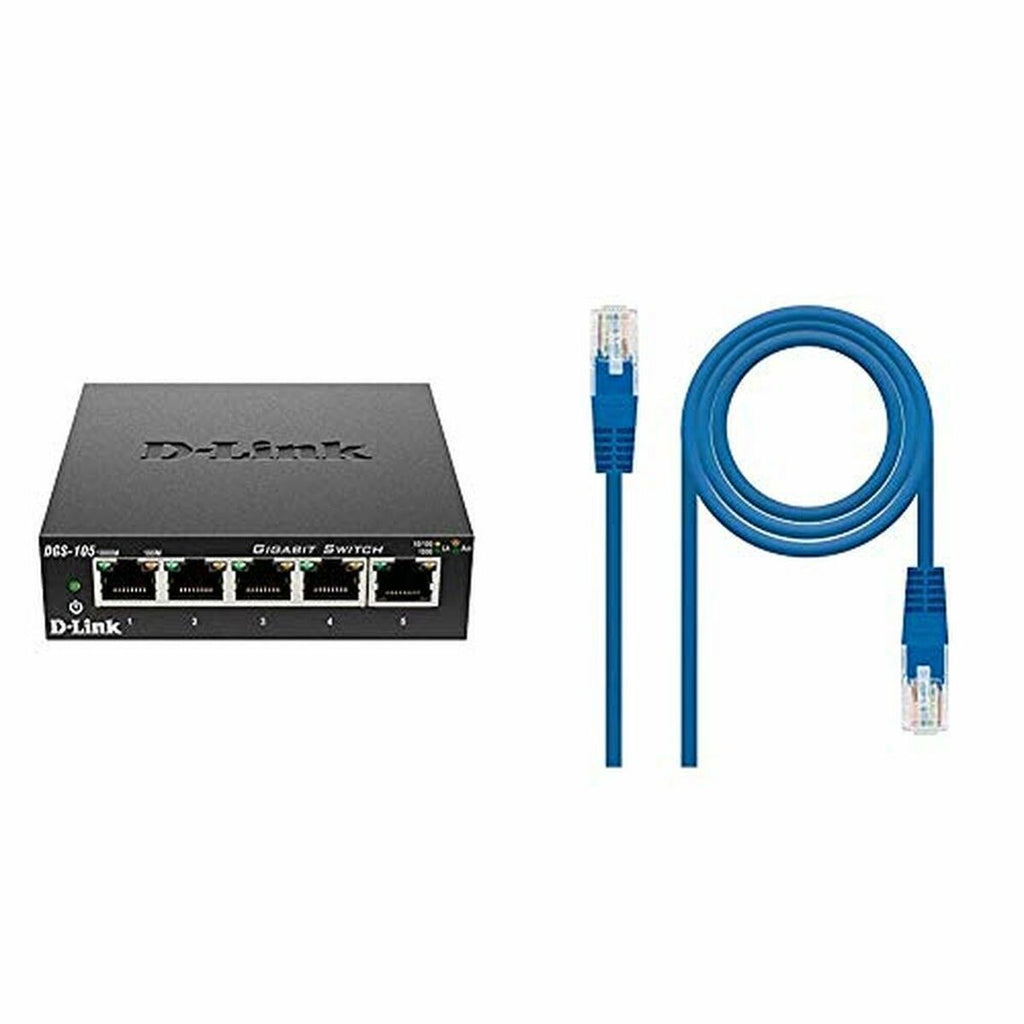

The D-Link DGS-105 is a managed desktop switch designed for home and small business environments that require an efficient and stable network connection, especially for IPTV networks. This model features a robust and compact black metal casing , measuring 100 x 98 x 28 mm, which integrates five high-quality RJ45 Ethernet ports to connect multiple devices with speeds from 10 Mbps to 1 Gbps, thanks to compatibility with IEEE 802.3, 802.3u, and 802.3ab standards, ensuring fast and reliable communication. The DGS-105 includes advanced features such as IGMP Snooping enabled , which allows for effective management of IPTV multicast traffic, preventing unnecessary propagation across the network and impacting the performance of connected devices, including Wi-Fi, ensuring a smoother viewing experience on the Set-Top Box. Its Layer 2 architecture with 2,000-entry MAC table-based storage and routing and support for Jumbo Frames up to 9,000 bytes optimizes data exchange, while NWay auto-negotiation and Auto MDI/MDIX capabilities facilitate worry-free connection regarding cabling type. In terms of performance, the switch offers a total capacity of 10 Gbps in the switching fabric and transfer rates according to Ethernet, Fast Ethernet, and Gigabit Ethernet, with a maximum rate of up to 1,488,000 packets per second per port at Gigabit speed. Energy efficiency is another strong point, with support for IEEE 802.3az Energy Efficient Ethernet (EEE) and automatic cable length detection that reduces power consumption, supported by an external 5V/1A power adapter that ensures a maximum consumption of only 2.01W. In addition, it has LED indicators per port that show connection status, activity, and speed, facilitating visual monitoring. Its durability and reliability are guaranteed with an MTBF lifespan of over 1.6 million hours and international certifications such as FCC, CE, and ICES-003 Class B. Compatible with current connectivity demands, this desktop switch combines metal and plastic materials to offer durability and functionality in a discreet and efficient device. In short, the D-Link DGS-105 is a practical and technical solution to improve traffic management in small networks, optimizing the performance and quality of IPTV and Ethernet services in home or professional environments.
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Power Source: mains electricity
- Connectivity: Gigabit Ethernet
- Quantity: 1
- Ports: 5
- Approximate measurements:
- 3 cm
- 11.4 cm
- 19.7 cm
- Color: Black
- Material:
- Metal
- Plastic
- Features: With cable
- Voltage: 5 V
- Connections:
- Ethernet LAN
- RJ45 x 5
- Amperage: 1 A
- Product width: 10 cm
- Operating humidity range: 10% - 90%
D-Link DGS-105. Number of Basic Switching RJ-45 Ethernet ports: 5. Full duplex. MAC address table: 2,000 entries. Routing/switching capacity: 10 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC input jack.
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 5
- Power connector: DC input jack
- Communications Standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
- 10G support: Yes
- Copper Ethernet wiring technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- MAC address table: 2000 entries
- Routing/switching capacity: 10 Gbit/s
- Data transmission speed: 10/100/1000 Mbps
- Store-and-forward: Yes
- Maximum data transfer speed: 1 Gbit/s
- Supports jumbo packages: Yes
- Packet memory stored: 0.128 MB
- MAC address filtering: Yes
- Shelf assembly: No
- Product color: Black
- Product body material: Metal
- Certifications: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
- MTBF: 1688338 h
- Shipping package height: 36.6 cm
- Shipping package width: 23 cm
- Shipping package length: 33.5 cm
- Net weight of shipping box: 5 pounds
- Quantity per shipping package: 10 unit(s)
- Gross weight of the pallet (air): 439.8 kg
- Number of boxes per pallet (air): 75 unit(s)
- Quantity per pallet (air): 750 unit(s)
- Pallet length: 120 cm
- Pallet width: 110 cm
- Pallet height (air): 2.04 m
- Gross weight of the pallet (sea): 439.8 kg
- Number of boxes per pallet (mar): 75 unit(s)
- Quantity per pallet (mar): 750 unit(s)
- Pallet height (sea): 2.04 m
- Shipping package weight: 5.53 kg
- Input current: 1 A
- Typical power consumption: 2.1 W
- Operating temperature: 0 - 50 °C
- Temperature range (storage): -10 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-operating humidity: 5 - 90%
- Product weight: 286 g
- Package length: 170 mm
- Package width: 220 mm
- Package height: 62 mm
- Package weight: 450 g
- Actual transfer speed: 2000 Mbit/s
- Product dimensions (LxWxH): 100 x 98 x 28 mm
- Connectivity technology: Wired
- Input voltage: 5 V
