Description

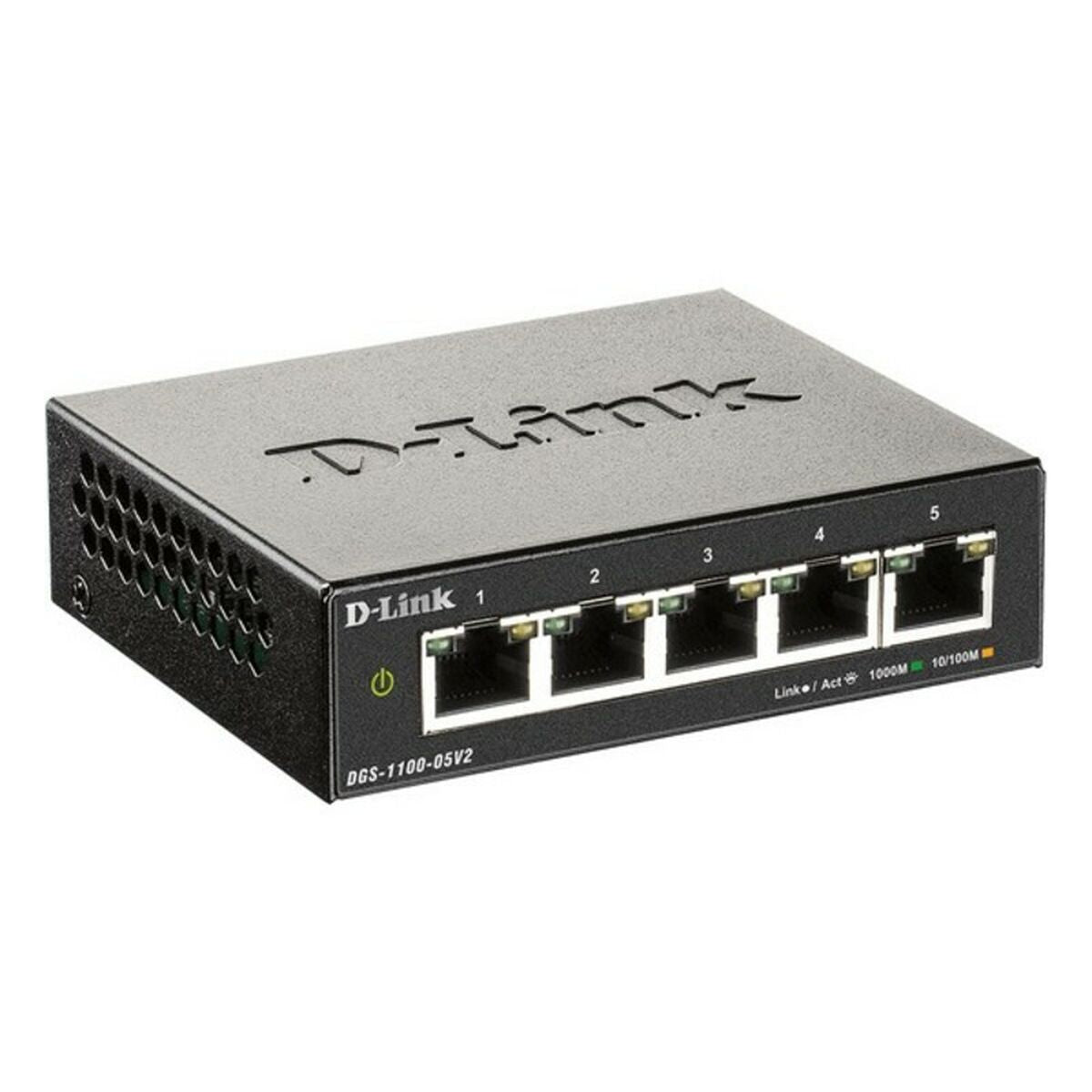

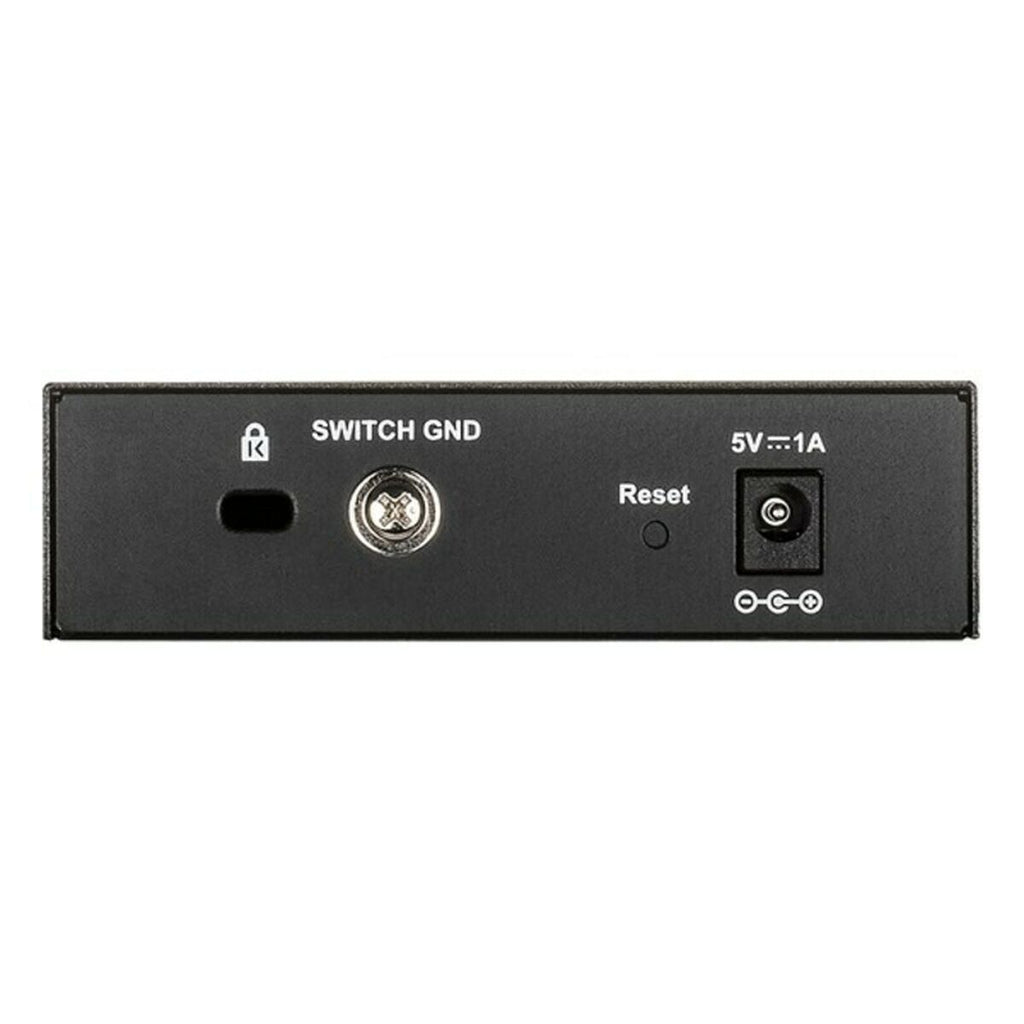

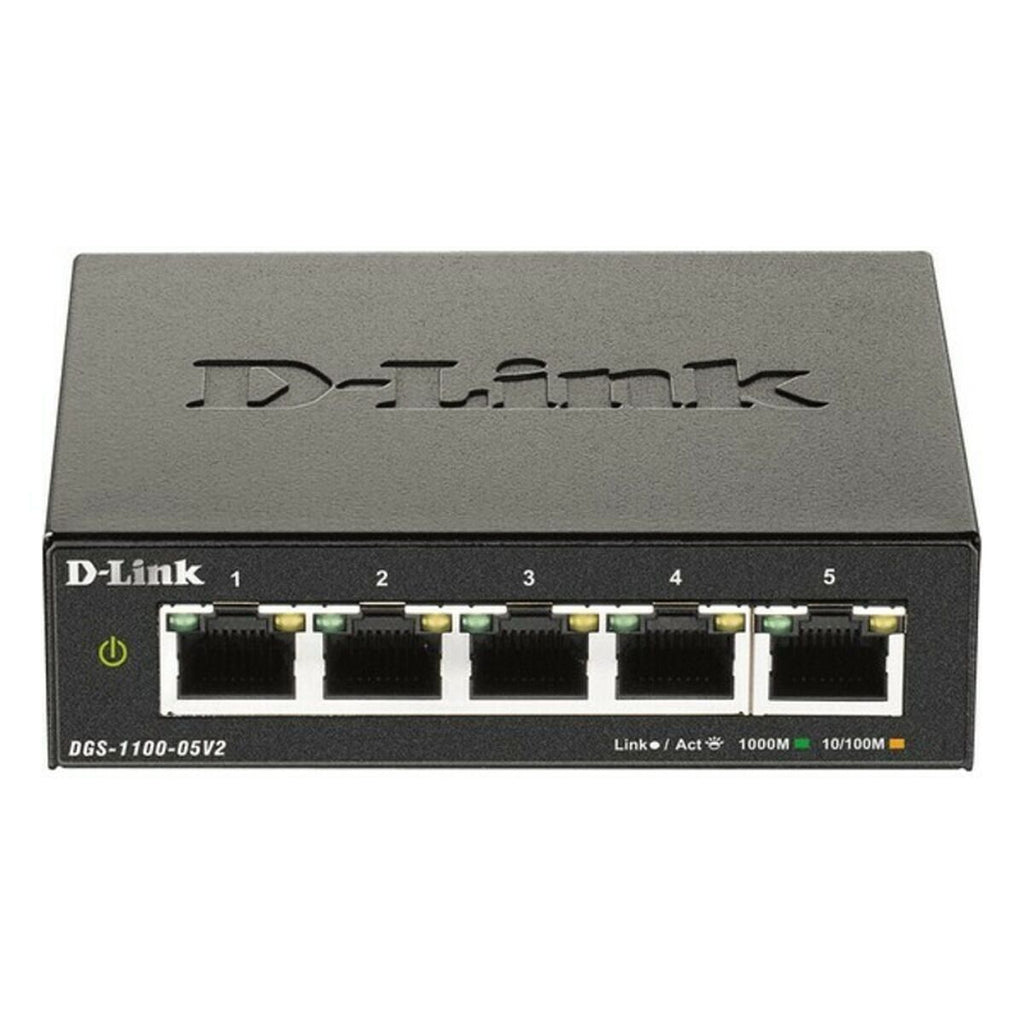

The D-Link DGS-1100-05V2 switch is a network device designed for office and home use, offering 5 Gigabit Ethernet RJ45 ports for fast and stable LAN connections, suitable for interconnecting computers, printers, and other network devices. With a total switching capacity of 10 Gbps and a maximum packet forwarding rate of 7.44 Mpps , it allows for smooth data traffic management, optimizing local network performance. It features a MAC address table with a capacity of 2,000 entries and a 1 Mbit packet buffer , facilitating efficient traffic handling without data loss. Its compact desktop design, measuring 100.5 x 82 x 28 mm and weighing only 0.23 kg , is made of black metal , offering robustness and adequate heat dissipation. The equipment has low energy consumption, with a maximum of 3.42 W , and is compatible with IEEE 802.3az energy efficiency standards, contributing to savings through link state and cable length control. Regarding network management, the switch supports advanced port-based VLAN configurations, including voice, administration, and surveillance VLANs, with support for up to 32 static VLAN groups and a maximum of 4,094 VLAN identifiers (VIDs) , offering flexibility to segment traffic and improve security. In addition, it includes Layer 2 functions such as IEEE 802.3x flow control, HOL blocking prevention, support for Jumbo Frames up to 9,216 bytes, and IGMP monitoring with support for 32 groups to optimize multicast management. Among the security features, this switch has static MAC address control (up to 32 entries) and mechanisms for preventing unknown broadcast, multicast, and unicast storms. Administration is easily performed via a web-based graphical interface (IPv4 support) and the SmartConsole client tool, facilitating configuration and monitoring even for users with basic knowledge. It holds international security and EMI/EMC compatibility certifications such as FCC Class B, CE Class B, and others, ensuring reliable operation. Power is supplied by an external power source with a 240 VAC input at 50-60 Hz . All this makes the DGS-1100-05V2 a reliable and efficient solution for environments requiring a switch with advanced basic management, good performance, and low power consumption in a compact and robust form factor.
- Power Source: mains electricity
- AC input voltage: 100-240V
- Approximate weight: 230 g
- Approximate dimensions: 10 x 8.2 x 2.8 cm
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Color: Black
- Connections:
- RJ45
- Ethernet LAN
- RJ45 x 5
- Voltage:
- 100-240 V
- 5 V
- 100 - 240 V
- Amperage: 1 A
- Frequency: 50-60 Hz
- Material:
- Metal
- Aluminum
- Plastic
- Ports: 5
- Accuracy (relative humidity): 0% - 90%
- Approximate temperature: -40º / 70º
