Description

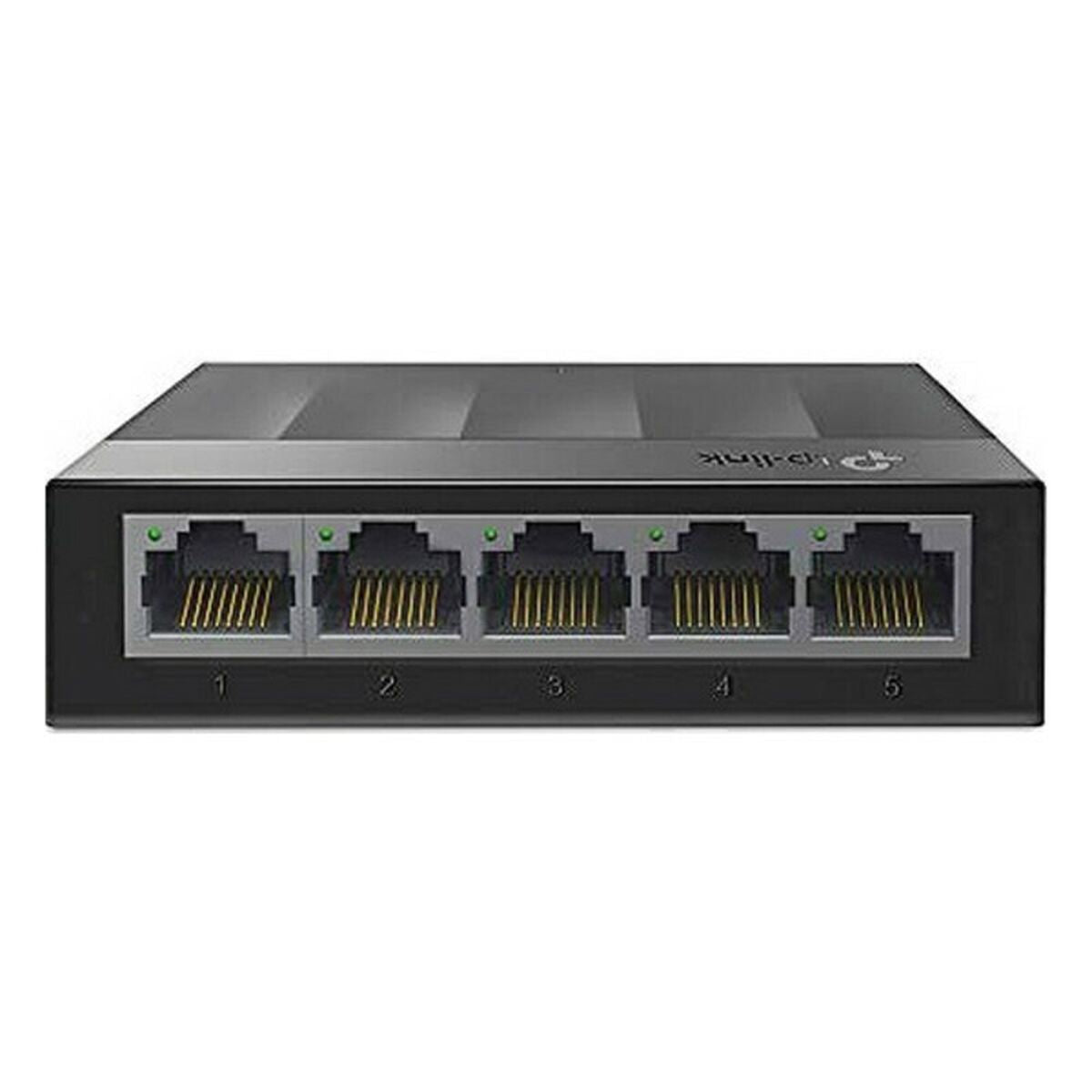

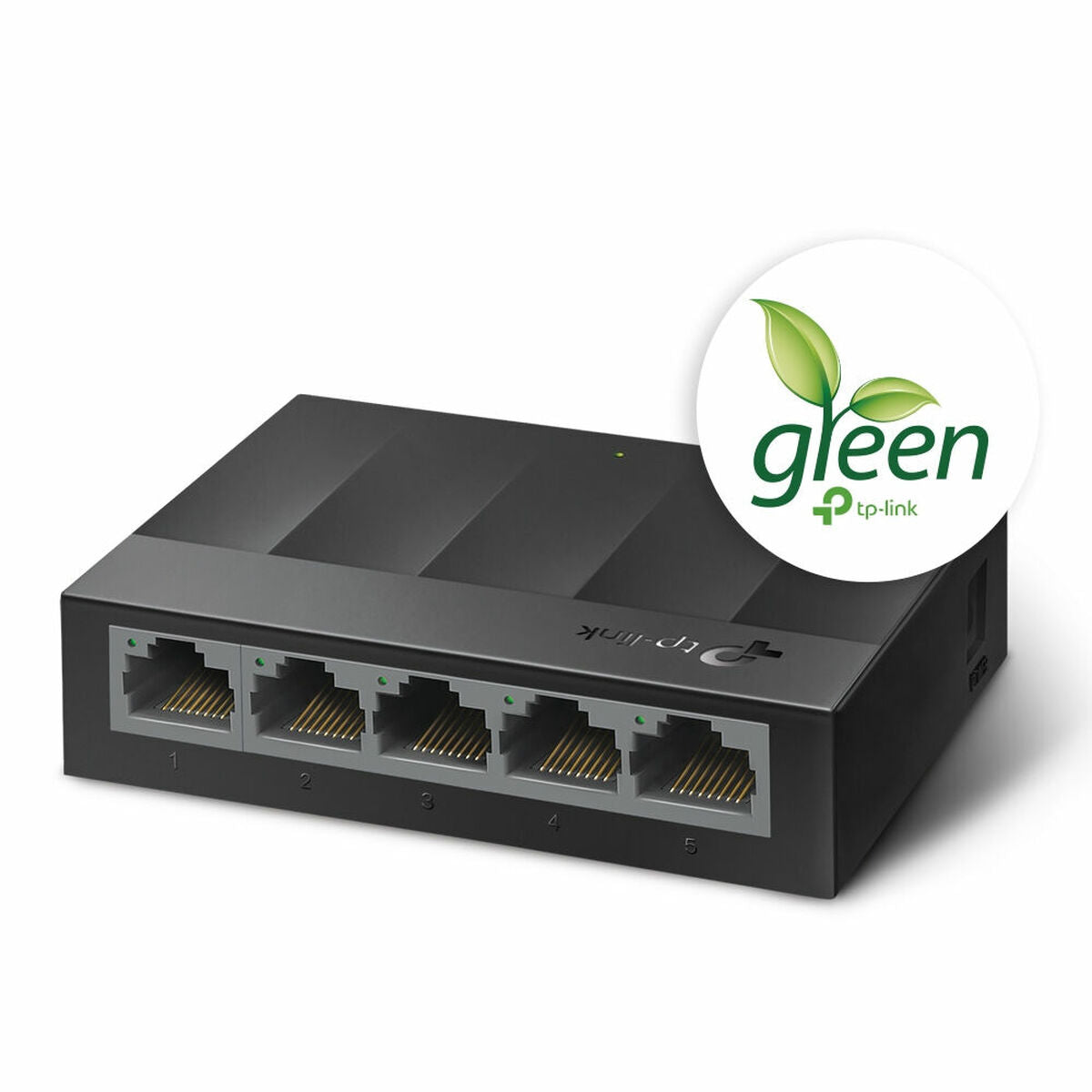

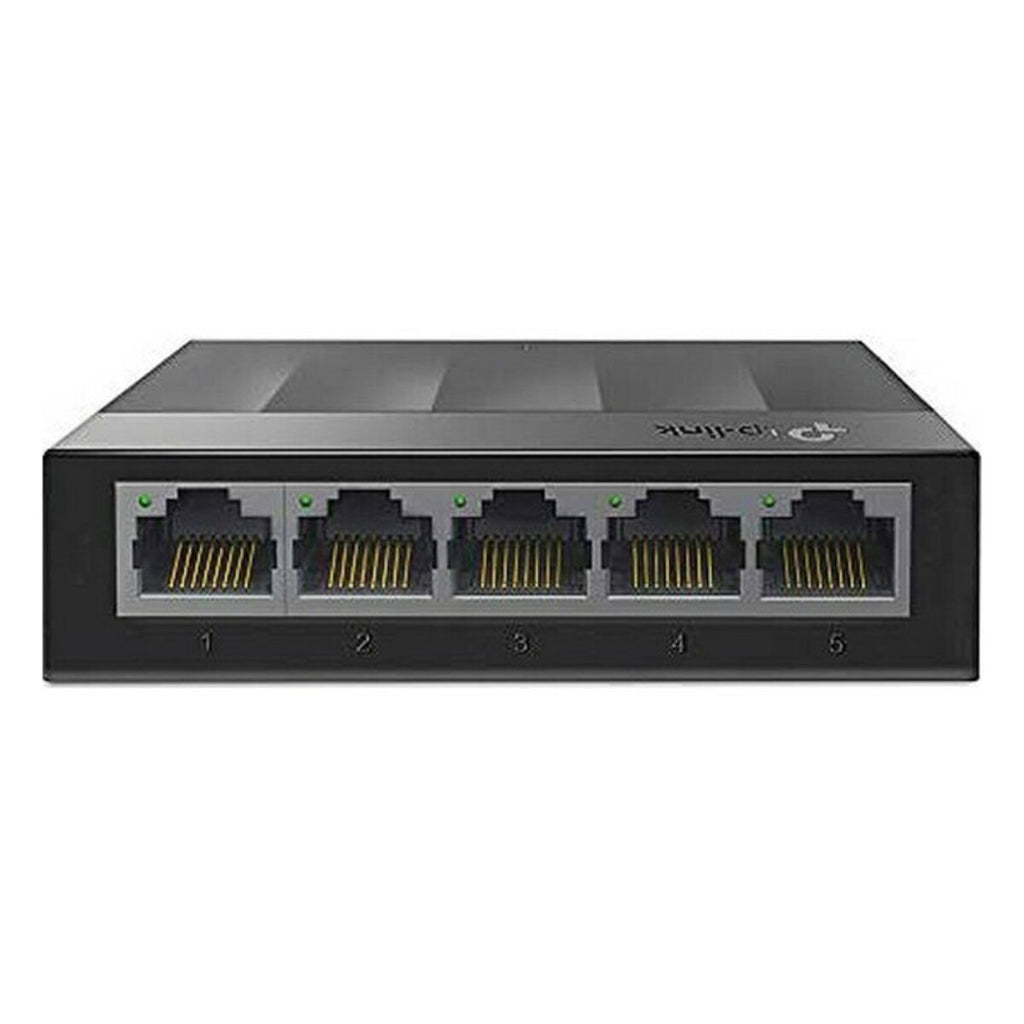

The TP-Link LS1005G desktop switch is an unmanaged network device designed to provide reliable and efficient connectivity in home and small office environments. This model includes 5 Gigabit Ethernet RJ-45 ports , allowing data transfers of up to 1,000 Mbps, facilitating the simultaneous connection of multiple devices without performance loss. Its 10 Gbit/s switching capacity ensures fast internal communication, ideal for increasing productivity and network responsiveness. Manufactured with a robust black metal chassis, the LS1005G offers durability and efficient heat dissipation, as well as a compact design that allows wall mounting, optimizing workspace. Its low power consumption of 1.65 W contributes to more efficient and environmentally responsible use, making it an economical option in terms of electricity. Compatible with IEEE 802.3i, 802.3ue and 802.3x standards, it ensures stable operation and compatibility with most existing equipment. It operates with a 5V DC input voltage, providing safety and simplicity in powering the device. It includes an installation guide to facilitate uncomplicated setup. In short, the TP-Link LS1005G is a simple, reliable, and efficient solution for expanding local area networks with equipment that combines build quality and performance in a practical format designed for versatile mounting.
- Power consumption: 1.65 W
- Features:
- LED operation indicator
- Wall mount
- Installation guide included.
- Power supply:
- electrical grid
- A.D
- Approximate dimensions: 8.36 x 4.57 x 2.28 cm
- Color: Black
- Type: Enclosure Switch
- Plug-in product: Yes
- Plug type: EU plug
- Connections:
- RJ45
- Ethernet LAN
- RJ45 x 5
- Material:
- Plastic
- Metal
- Voltage:
- 5 V
- 220 V
- Ports: 5
- IP rating: IP55
- Amperage:
- 1 A
- 0.6 A
- Certified: CE, FCC, RoHS
- Weight: 180 g
- LED indicator: Status: ON, change in intensity, or load.
- Operating humidity range: 10% - 90%
- Speed: 1000 Mbps
- Approximate temperature: -40º / 70º
TP-LINK LS1005G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000). Number of Basic switching RJ-45 Ethernet ports: 8. MAC address table: 2000 entries. Routing/switching capacity: 10 Gbit/s. Communication standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable.
- Switch type: Unmanaged
- Number of Basic Switching RJ-45 Ethernet ports: 8
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Communication Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Automated trading: Yes
- MAC address table: 2000 entries
- Routing/switching capacity: 10 Gbit/s
- Routing rate: 7.4 Mpps
- Store-and-forward: Yes
- Supports jumbo packages: Yes
- Jumbo packages: 16000
- Packet memory stored: 1.5 MB
- Shelf assembly: No
- Product color: Black
- Product body material: Plastic
- LED indicators: Yes
- International Protection Code (IP): IP20, IP40
- Wall mountable: Yes
- Certifications: CE, FCC, RoHS
- Power supply included: Yes
- DC input voltage: 5 V
- Input current: 0.6 A
- Power consumption (max): 3.7 W
- Power over Ethernet (PoE): No
- Operating temperature: 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-operating humidity: 5 - 90%
- Heat dissipation: 12,617 BTU/h
- Width: 90 mm
- Depth: 72 mm
- Height: 24 mm
- Quick start guide: Yes
- Packaging type: Box
- Package length: 94 mm
- Package width: 91 mm
- Package height: 84 mm
