Description

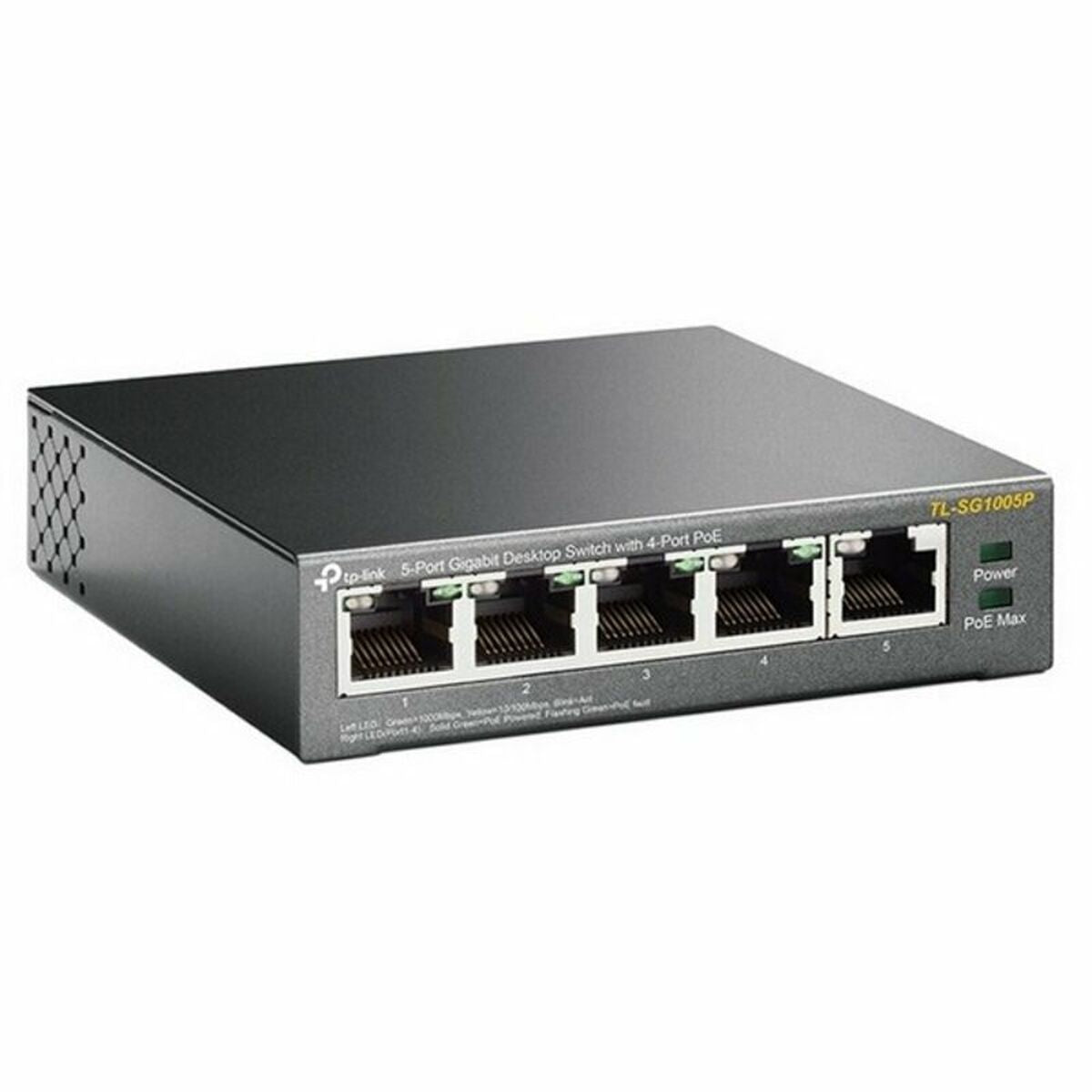

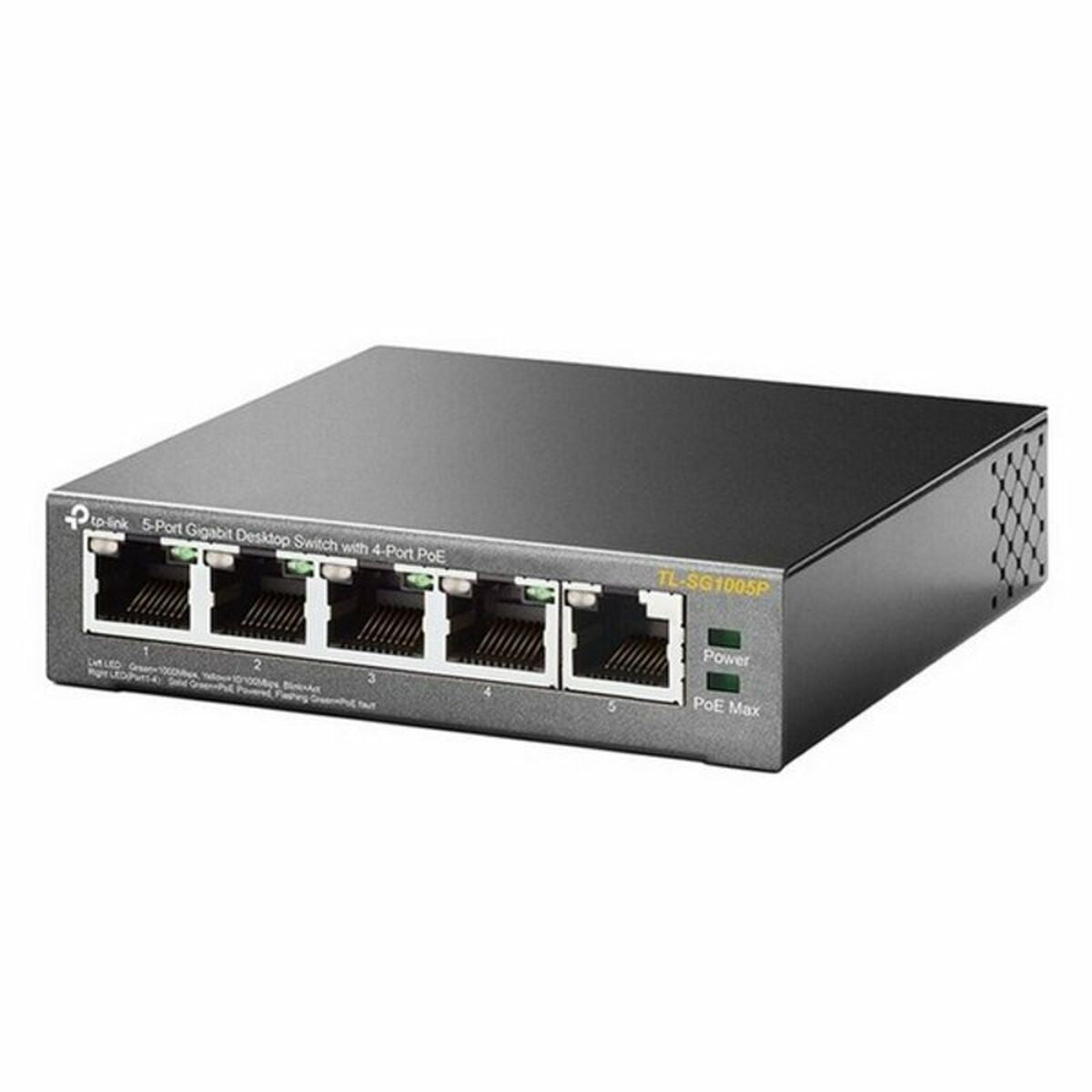

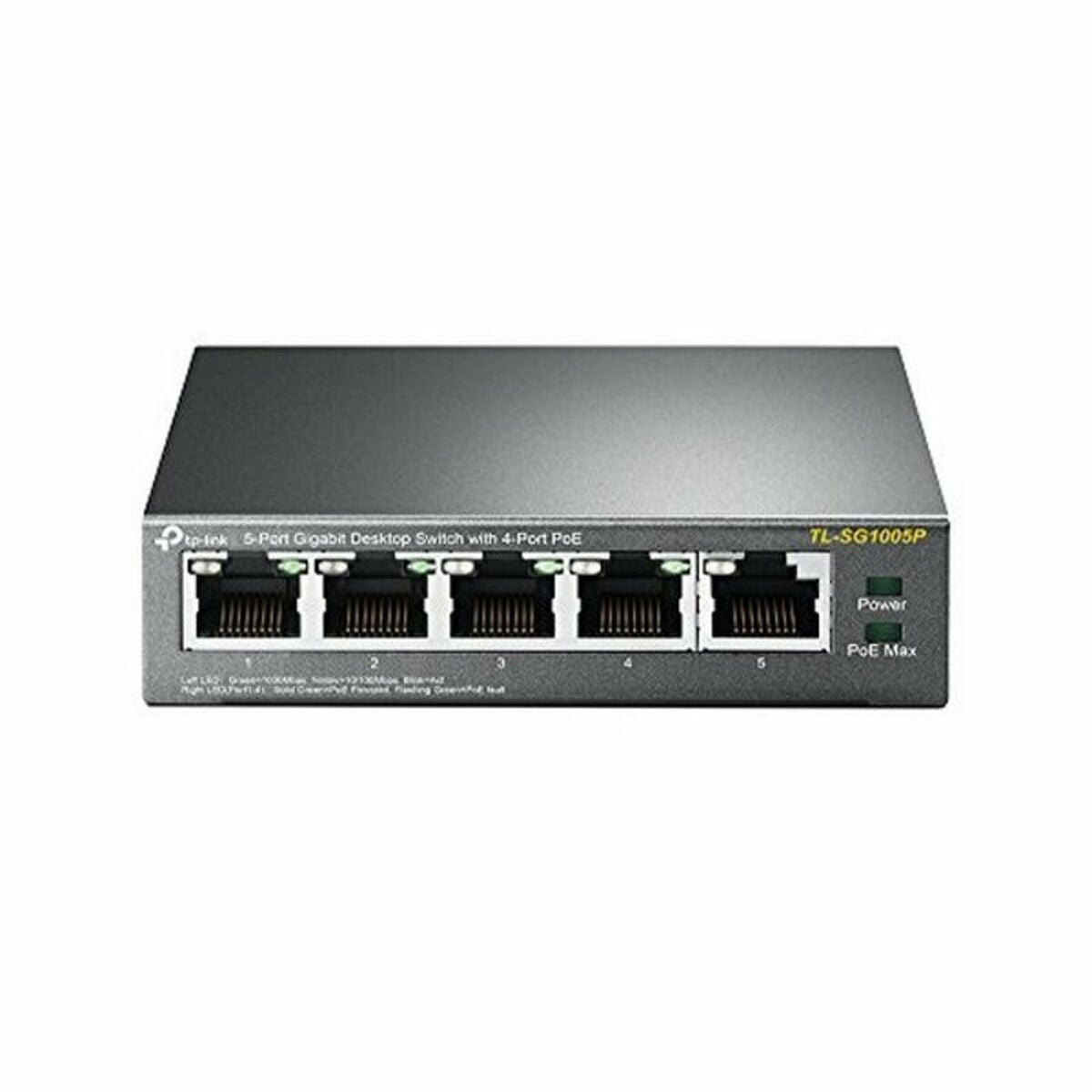

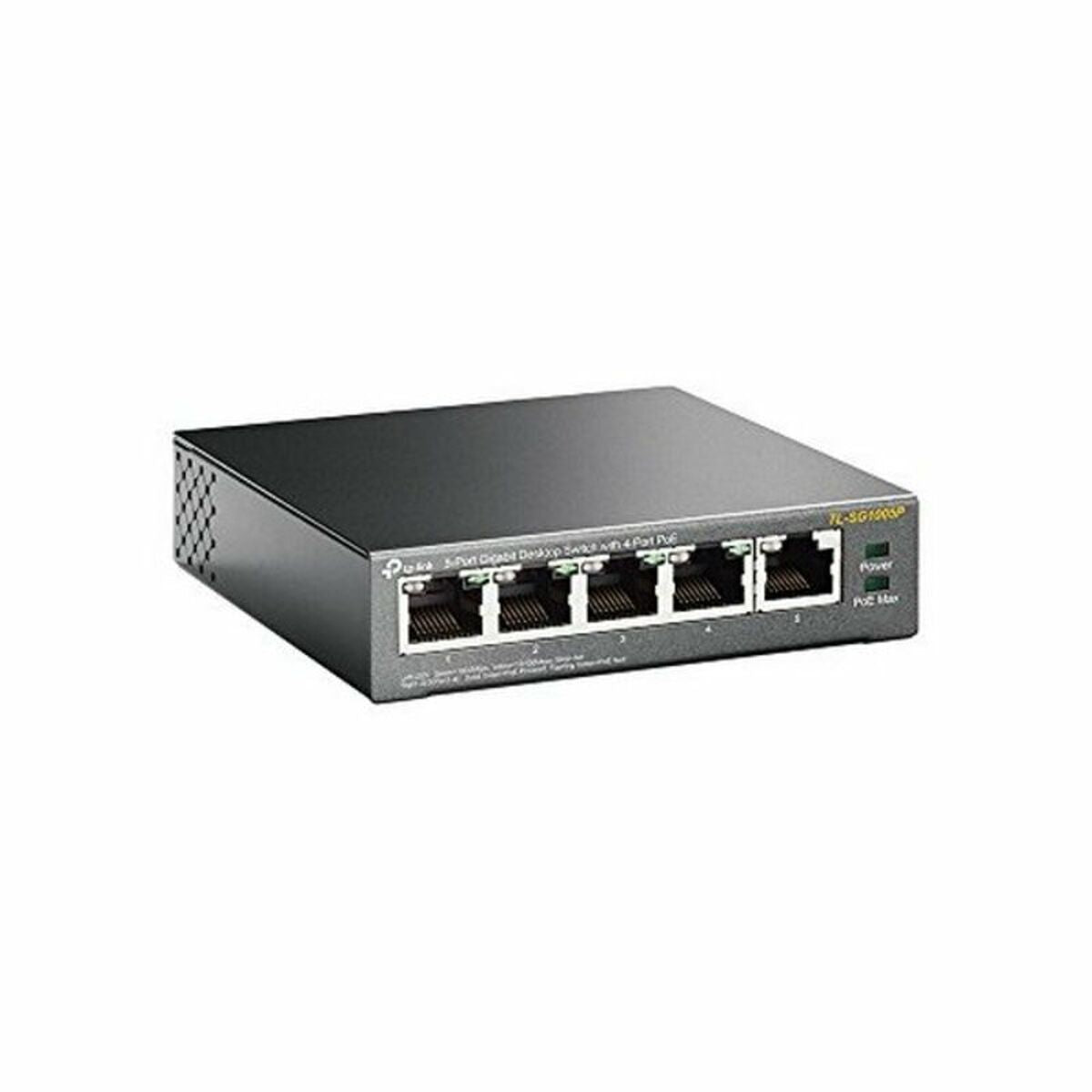

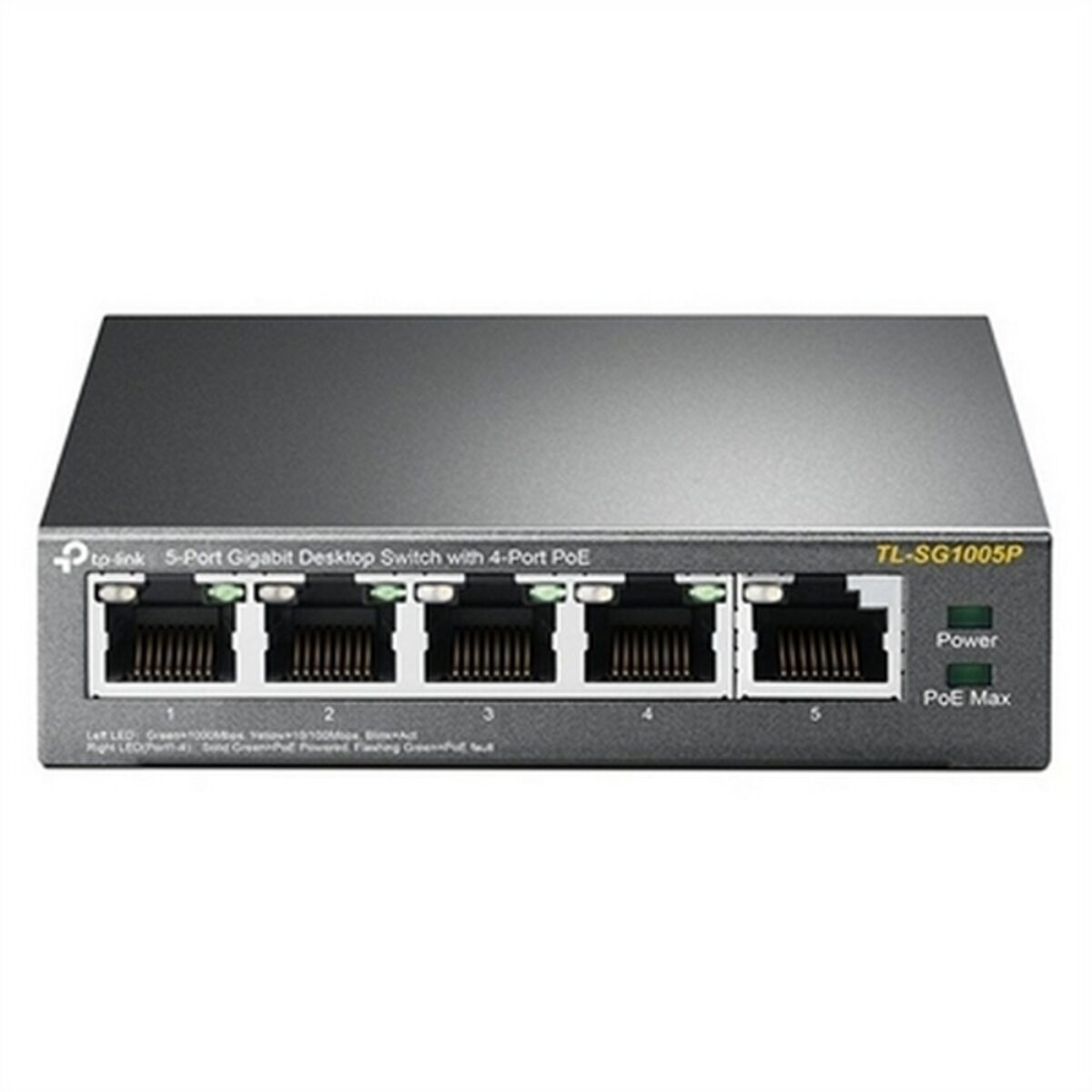

The TP-Link TL-SG1005P desktop switch is a networking device designed to improve connectivity in home and office environments, offering reliable and efficient performance. This 5-port Gigabit switch features 4 PoE (Power over Ethernet) ports that allow simultaneous data and power transmission to devices compatible with the IEEE 802.3af standard, facilitating installation without additional power cables. All ports support speeds of 10/100/1000 Mbps and have auto-negotiation with AUTO MDI/MDIX function to adapt to different network connections. With a back-end bandwidth of 10Gbps , this switch ensures smooth and uninterrupted data transfer. Its compact and robust metal design with a black and gray finish makes it easy to place in any workspace, occupying only 99.8 x 98 x 25 mm . Intelligent traffic management is possible thanks to advanced features such as 802.1p/DSCP QoS , which prioritize latency-sensitive packets, and support for IGMP querying , improving efficiency in multicast networks. It also includes automatic MAC address learning and aging mechanisms to optimize performance and reduce collisions. Its external power supply provides 48 VDC at 1.25A , with a total PoE capacity of 56W , delivering up to 15.4W per port , ideal for powering IP cameras, VoIP phones, or wireless access points. With low power consumption and FCC, CE, and RoHS certifications, it ensures safety and environmental protection. This switch requires no prior configuration, facilitating its installation and immediate use. In short, the TP-Link TL-SG1005P is a compact, efficient, and powerful solution for expanding and managing home or professional networks that require integrated PoE power.
- Speed:
- 10 Gbps
- 1000 Mbps
- Color:
- Gray
- Black
- Connections:
- PoE x 4
- RJ45
- PoE
- Ethernet LAN
- RJ45 x 5
- Approximate dimensions: 9.9 x 9.9 x 2.5 cm
- Frequency: 50 Hz
- Material:
- Metal
- Copper
- Year: 2017
- Voltage:
- 48 V
- 220 V
- Power supply:
- AC cable
- Included
- A.D
- Ports: 5
- Switch: Push-button switch
- Features: LED operation indicator
- Power: 4 W
- Operating humidity range: 10% - 90%
- Approximate temperature: -40º / 70º
- Security: IGMP
- Amperage: 1.25 A
