Description

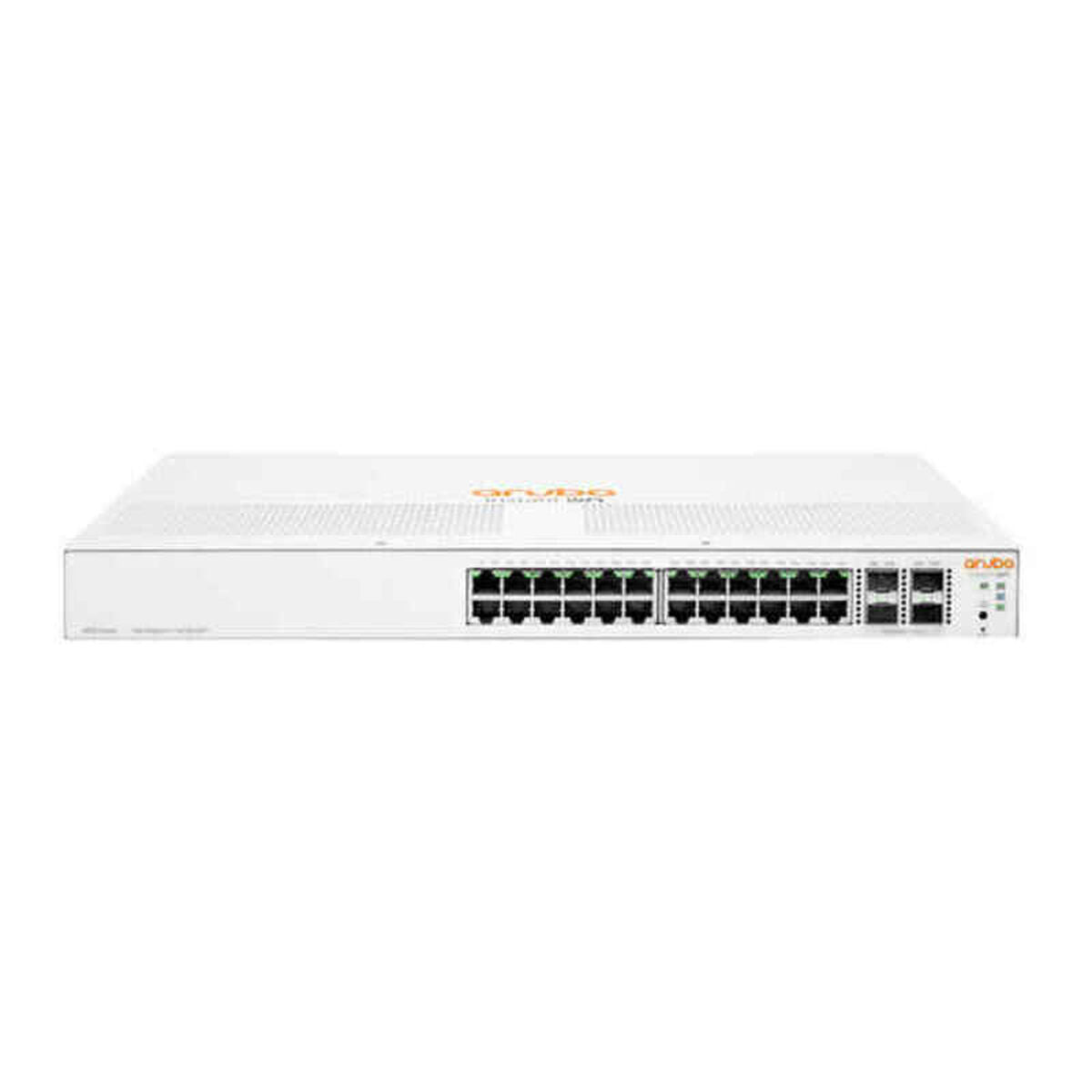

The HPE JL682A switch from the renowned HPE brand is a managed switch from the Aruba Networking Instant On series, designed especially for small and medium-sized businesses that demand high performance and flexibility in their networks. This model is part of the 1930 line and has 24 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps) that offer fast and stable connectivity for multiple devices, supporting full-duplex communication to optimize data traffic. In addition, it includes 4 SFP+ slots that support fiber optic connections up to 10 Gb/s , facilitating network integration and expansion with high speed and low latency. Its switching capacity reaches 128 Gbit/s , supported by a MAC table with 16,000 entries , ensuring efficient traffic management even in complex environments or with many simultaneous connections. This device operates at layer L2+, allowing advanced switching, segmentation, and traffic prioritization features (L3/L4) , contributing to greater security and performance in the corporate network. The switch chassis is compact and robust, with a 1U rack-mount form factor and an approximate weight of 3 kg . Made of durable plastic with a white and black finish, it easily adapts to different office environments. In terms of management, this switch stands out for its seamless integration with the HPE Aruba Instant On cloud platform, allowing configuration and administration via an intuitive mobile app or web portal accessible locally and remotely, facilitating centralized network monitoring and control without the need for additional infrastructure. Support for Class 4 PoE (PoE+) modes in some models in the series adds versatility for powering compatible devices without extra cables, although in this specific model, PoE power should be verified. The limited lifetime warranty offered by HPE adds security to the investment and reliability. In short, the HPE Aruba JL682A switch is a solid and scalable solution for businesses that need a reliable Gigabit Ethernet switch with advanced management options and fiber connectivity, optimizing network infrastructure performance.
- Connections:
- RJ45
- RJ45 x 24
- Ethernet LAN
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Power supply:
- electrical grid
- Included
- Color:
- White
- Black
- Voltage:
- 100-240 V
- 100 - 240 V
- Frequency:
- 50-60 Hz
- 800 Hz
- Flash Memory: 256 MB
- Material: Plastic
- Weight: 3 kg
- Number of slots: 4
- Processor: ARM Cortex A9
- AC input frequency: 50-60 Hz
- Form factor: 1U
- Memory type: SDRAM
- Approximate temperature: -40º / 70º
- Security: IGMP
Hewlett Packard Enterprise Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Ethernet port types: RJ-45 Basic Switching: Gigabit Ethernet (10/100/1000), Number of RJ-45 Basic Switching Ethernet ports: 24. Full duplex. MAC address table: 16000 entries, Routing/switching capacity: 128 Gbit/s. Communication standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mount, Form factor: 1U
- Switch type: Managed
- Switch layer: L2+
- Support for Quality of Service (QoS): Yes
- Web-based management: Yes
- Number of Basic Switching RJ-45 Ethernet ports: 24
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Number of SFP+ module slots: 4
- Communication Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Door mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Limitation rate: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 256
- MAC address table: 16000 entries
- Routing/switching capacity: 128 Gbit/s
- Productivity: 95.23 Mpps
- Latency (10-100 Mbps): 4.7 µs
- Latency (1 Gbps): 2.4 µs
- Latency (10 Gbps): 1.3 µs
- Supports jumbo packages: Yes
- Packet memory stored: 1.5 MB
- IGMP snooping: Yes
- SSH/SSL support: Yes
- Shelf assembly: Yes
- Stackable: No
- Shape: 1U
- Product color: White
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory capacity: 512 MB
- Flash memory size: 256 MB
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 22.6 W
- Power over Ethernet (PoE): No
- Operating temperature (TT): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity (HH): 15 - 95%
- Non-functioning humidity: 15 - 95%
- Width: 442.5 mm
- Depth: 221.5 mm
- Height: 43.9 mm
- Weight: 2.41 kg
