Description

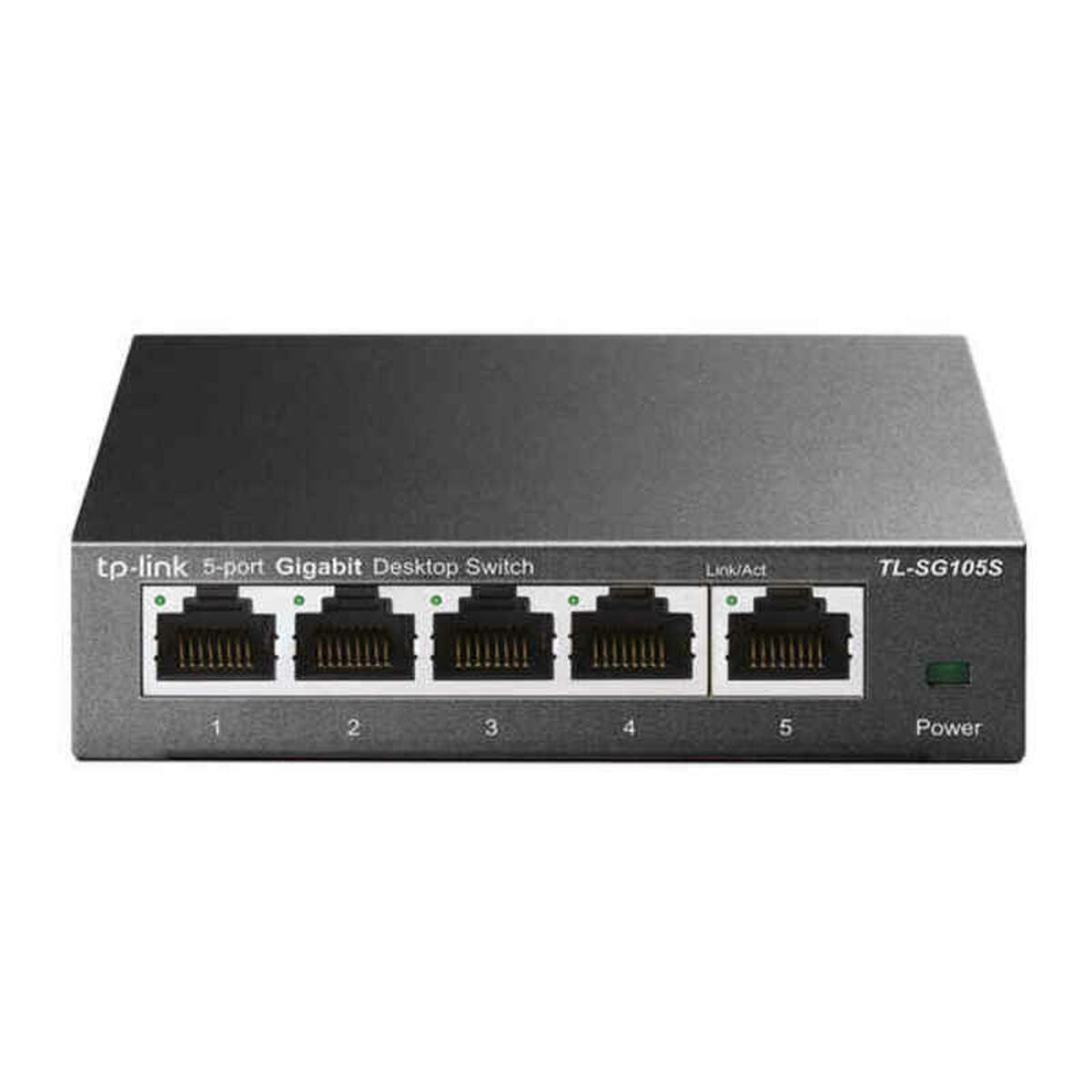

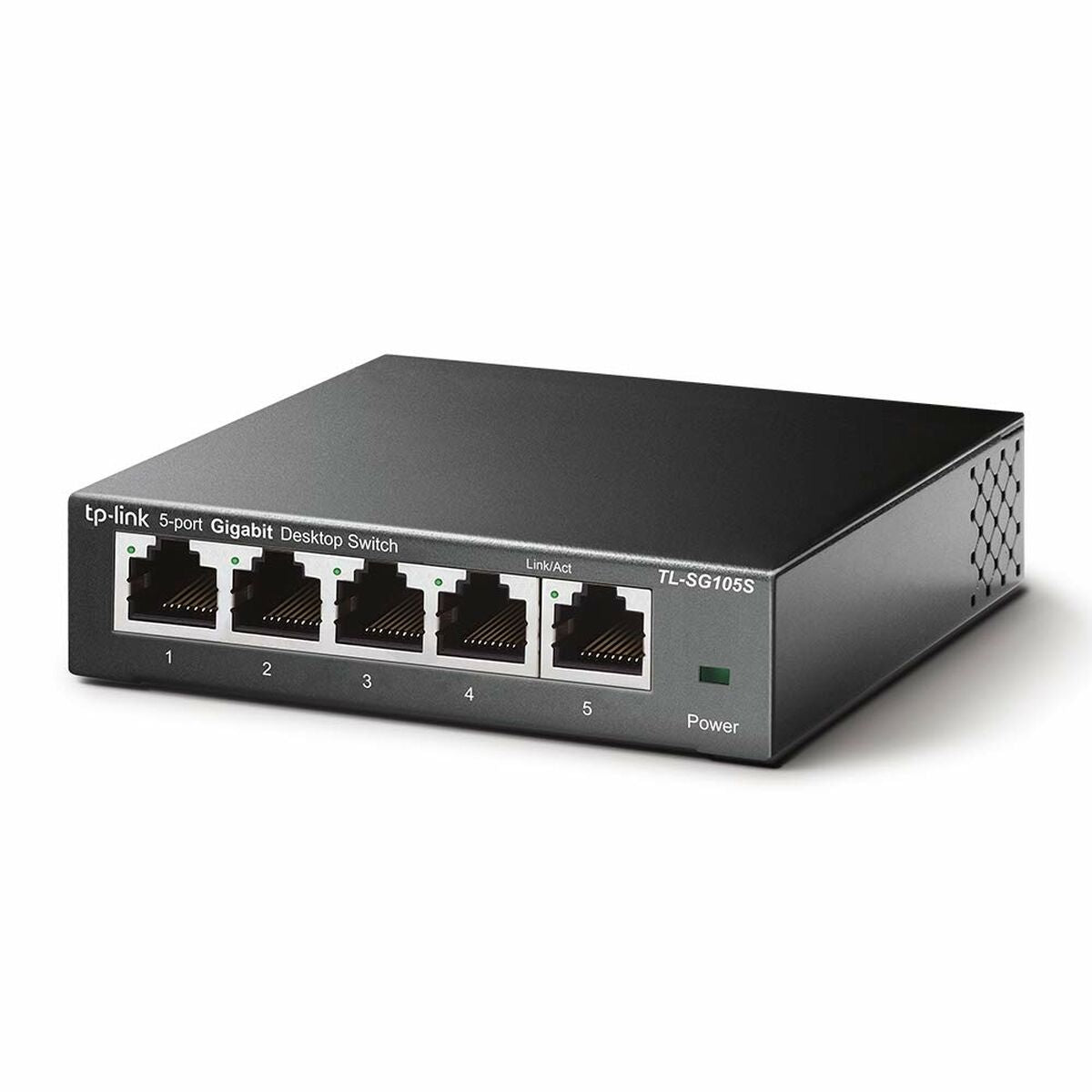

The TP-Link TL-SG105S is a compact and robust switch designed to offer efficient and reliable connectivity in home or small office environments where managing multiple wired connections is necessary. It features 5 RJ45 ports supporting 10/100/1000 Mbps Ethernet LAN speeds, allowing for smooth data transfer and simultaneous connection of multiple devices such as computers, printers, or IP cameras without bottlenecks. Its metal construction, specifically steel , ensures high durability and resistance to daily use, as well as promoting heat dissipation, extending the device's lifespan. The model has a black finish and offers versatile installation options with wall mounting or desktop use, easily adapting to different spaces and needs. Its fanless operation ensures quiet and stable performance, ideal for locations where low noise levels are valued. The TL-SG105S is a practical and efficient solution for those who want to improve their local network infrastructure, guaranteeing connection quality and installation flexibility.
- Plug-in product: Yes
- Plug type: EU plug
- Type: Switch
- Power supply:
- electrical grid
- AC cable
- Included
- A.D
- Color: Black
- Connections:
- RJ45
- Ethernet LAN
- USB x 3
- RJ45 x 5
- Voltage:
- 220 V
- 9 V
- 5 V
- Frequency: 50 Hz
- Material:
- Metal
- Steel
- Features:
- Wall mount
- Plug and play
- LED operation indicator
- Support: Multi-support
- Ports: 5
- Approximate weight: 200 g
- Certified: CE, FCC, RoHS
- Operating humidity range: 10% - 90%
- Approximate temperature: -40º / 70º
- Includes: User manual
- Security: IGMP
- Amperage: 0.6 A
TP-LINK TL-SG105S. Switch type: Unmanaged, Switch layer: L2. Ethernet port types: RJ-45 Basic Switching: Gigabit Ethernet (10/100/1000), Number of RJ-45 Basic Switching Ethernet ports: 5. Full duplex. MAC address table: 2,048 entries, Routing/switching capacity: 10 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable.
- Switch type: Unmanaged
- Switch layer: L2
- Support for Quality of Service (QoS): Yes
- Number of Basic Switching RJ-45 Ethernet ports: 5
- Basic switching RJ-45 Ethernet port types: Gigabit Ethernet (10/100/1000)
- Number of Gigabit Ethernet ports (copper): 5
- Communication Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper Ethernet wiring technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Supported cable types: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Automated trading: Yes
- MAC address machine learning supported: Yes
- Automatic MAC address update supported: Yes
- MAC address table: 2048 entries
- Routing/switching capacity: 10 Gbit/s
- Routing rate: 7.4 Mpps
- Store-and-forward: Yes
- Supports jumbo packages: Yes
- Jumbo packages: 16000
- Stored packet memory: 1 MB
- IGMP snooping: Yes
- Multicast support: Yes
- Shelf assembly: No
- Product color: Black
- Product body material: Iron
- LED indicators: Yes
- Wall mountable: Yes
- Certifications: CE, FCC, RoHS
- Plug and Play: Yes
- Power supply included: Yes
- AC input voltage: 220 V
- AC input frequency: 50 Hz
- DC input voltage: 5 V
- Input current: 0.6 A
- Output voltage: 9 V
- Output current: 0.6 A
- Power consumption (max): 2.3 W
- Power over Ethernet (PoE): No
- Operating temperature: 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Operating relative humidity range: 10 - 90%
- Non-operating humidity: 5 - 90%
- Heat dissipation: 7.83 BTU/h
- Width: 99.8 mm
- Depth: 97.8 mm
- Height: 25 mm
- Cables: AC
- User guide: Yes
- AC adapter included: Yes
- Packaging type: Box
- Rubber feet: Yes
- Package length: 128 mm
- Package width: 125 mm
- Package height: 92 mm
